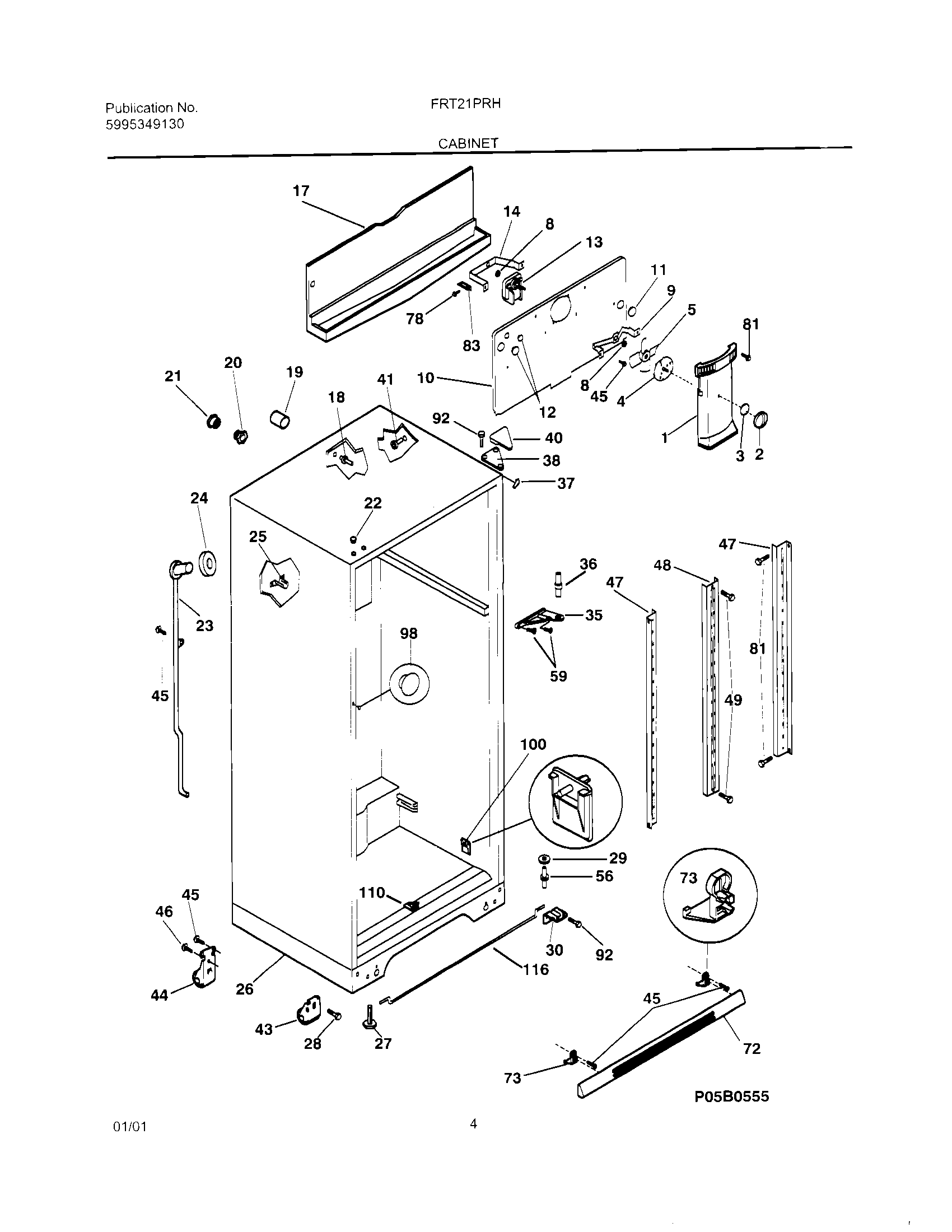

FRT21PRHD7 05 – CABINET

FRT21PRHD7 05 – CABINET

Written by

in

FRT21PRHD7 05 – CABINET

Products

PositionProduct
NIPLUG, BUTTON, CABINET LINER (NI)
NINUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NIWCI 218605300
NITOUCH, UP PAINT, ALMOND (NI)
NIWCI 218605200
NIWCI 218905701
NI5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5304414684
10WCI 218973801
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12WCI 215079100
13WCI 218878801
14WCI 5303322992
17WCI 218974001
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605102
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER,NYLON ,0.245 ID W/NIBS
30WCI 218220203
35WCI 218998902
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218916405
73WCI 218896704
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
110WCI 215363501
116WCI 215426703
