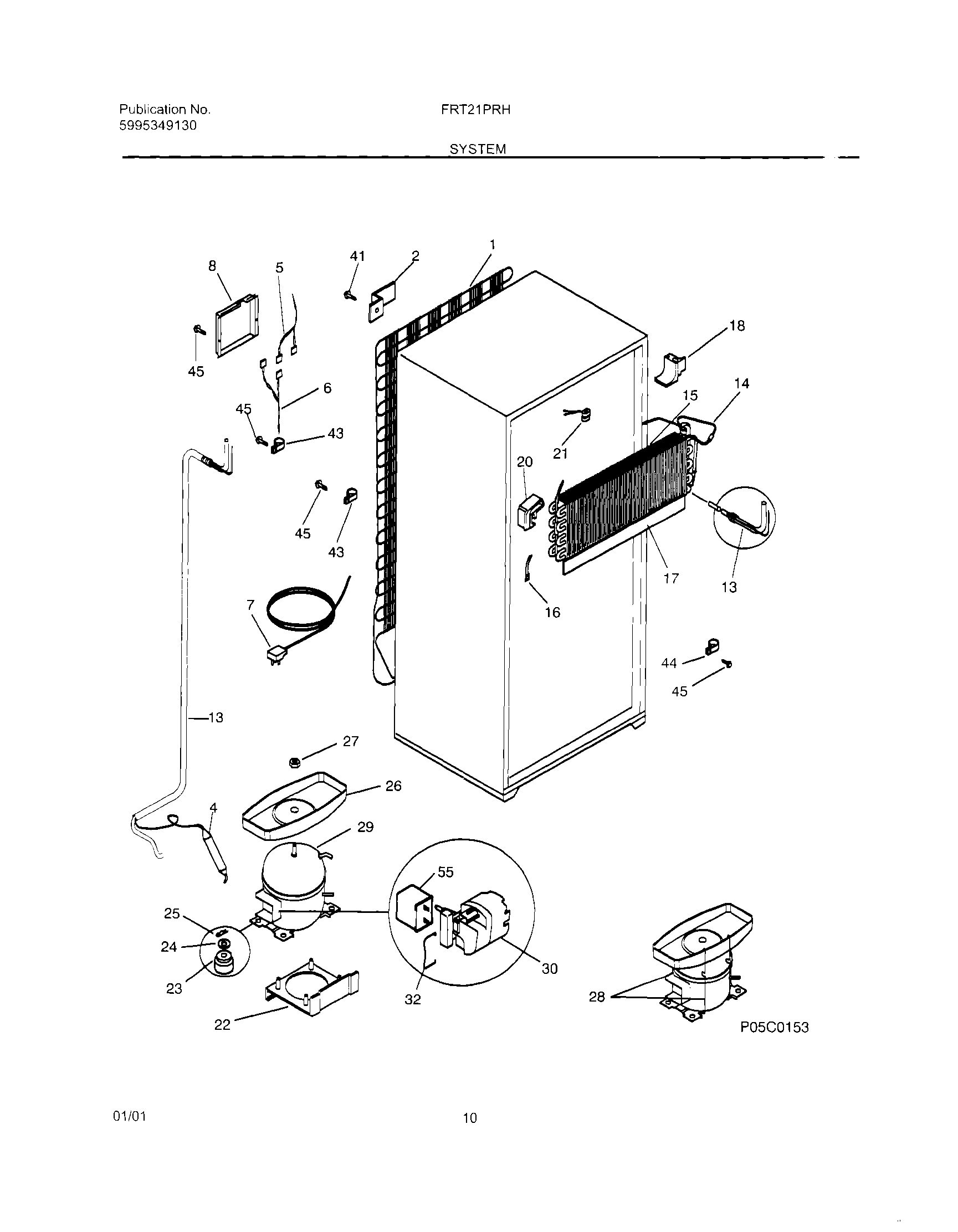

FRT21PRHD7 09 – SYSTEM

Products

Position	Product
NI	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
NI	HOT TUBE REPAIR KIT-SERVICE
NI	5308000133 Frigidaire Refrigerator Clamp
NI	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
NI	WCI 5304406721
NI	WCI 218905701
NI	SCREW,HEX HD SER WSHR ,8-18 X 0.375
NI	WCI 5304406722
NI	WCI 5304406040
NI	5304455852 Frigidaire Refrigerator Screw
NI	WCI 5304406039
1	WCI 218657100
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076408
14	WCI 5304419040
15	WCI 218955701
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 218973901
18	WCI 218998101
20	WCI 218821201
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721108
32	218973501 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	WCI 218974101
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
