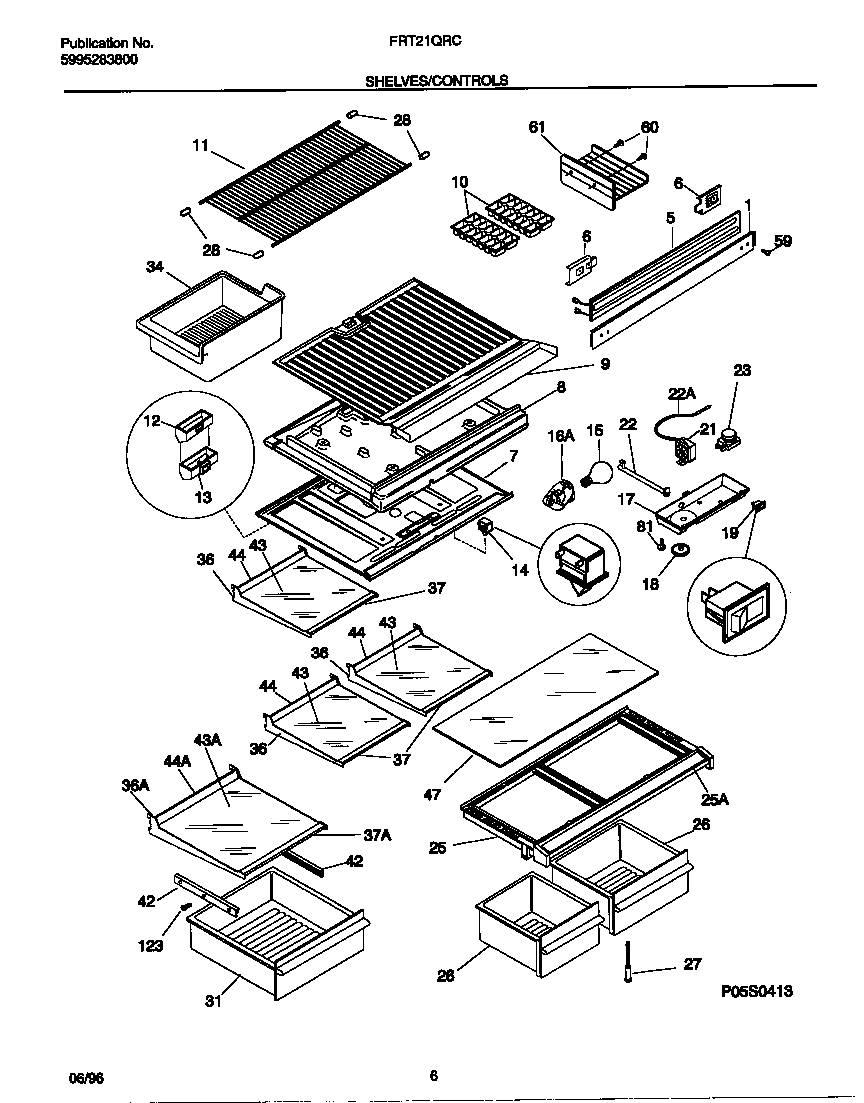

FRT21QRCD3 04 – SHELVES/CONTROLS

FRT21QRCD3 04 – SHELVES/CONTROLS

Written by

in

FRT21QRCD3 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218651901
5WCI 218271402
6WCI 218279800
7AWCI 3019038
7BWCI 5303001380
8AWCI 5303019039
8B3205266 Frigidaire Refrigerator Edge Protector
8CHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303288243
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12WCI 218630800
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303307349
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303303674
21BWCI 5303001260
22WCI 5303319683
22TUBE
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
25WCI 5303206538
25WCI 5303308338
26AWCI 5303308330
26BWCI 5303308332
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303308334
345303212918 Frigidaire Refrigerator Cont
36WCI 215919116
36FRAMER, HALF SHELF, CATILEVER
37TRIM-GLASS SHELF, 12.59“, FRONT
37TRIM-GLASS SHELF, 13.07“, FRONT
42AHANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
43WCI 218390521
43WCI 218390522
44TRIM-GLASS SHELF,13.07“ ,REAR
44WCI 215919810
47WCI 218390523
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
