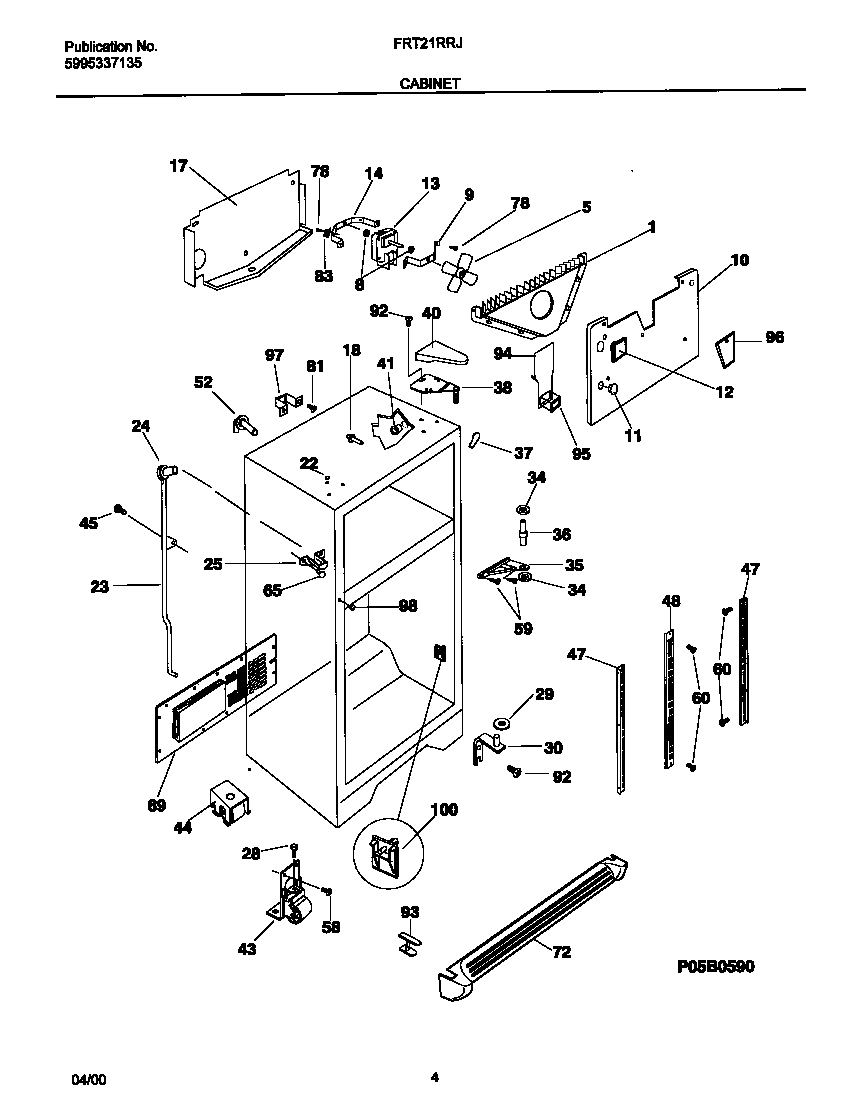

FRT21RRJD0 03 – CABINET

FRT21RRJD0 03 – CABINET

Written by

in

FRT21RRJD0 03 – CABINET

Products

PositionProduct
*05009SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*05005WCI 218979601
*05004WCI 215314301
*05008GROMMET-SHELF MTG,.69“ LONG
*05011PLUG-WTR INLET TUBE
*05010SCREW,HEX HD SER WSHR ,8-18 X 0.375
*05012SEAL-AIR DUCT COVER
*05002NUT-ANCHOR
*05006WCI 218979701
*05016PLUG, BUTTON, CABINET LINER (NI)
*05015TOUCH, UP PAINT, ALMOND (NI)
*05013WCI 215848000
*05003WCI 215314300
*05007WCI 5304403492
*05001215474201 Frigidaire Refrigerator Washer
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5304415955
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218220102
36WCI 218971101
37WCI 5303321082
38WCI 218215251
40WCI 5303318774
41GROMMET-SHELF MTG,1.25“ LONG
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
65WCI 5303001361
72WCI 218359608
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
