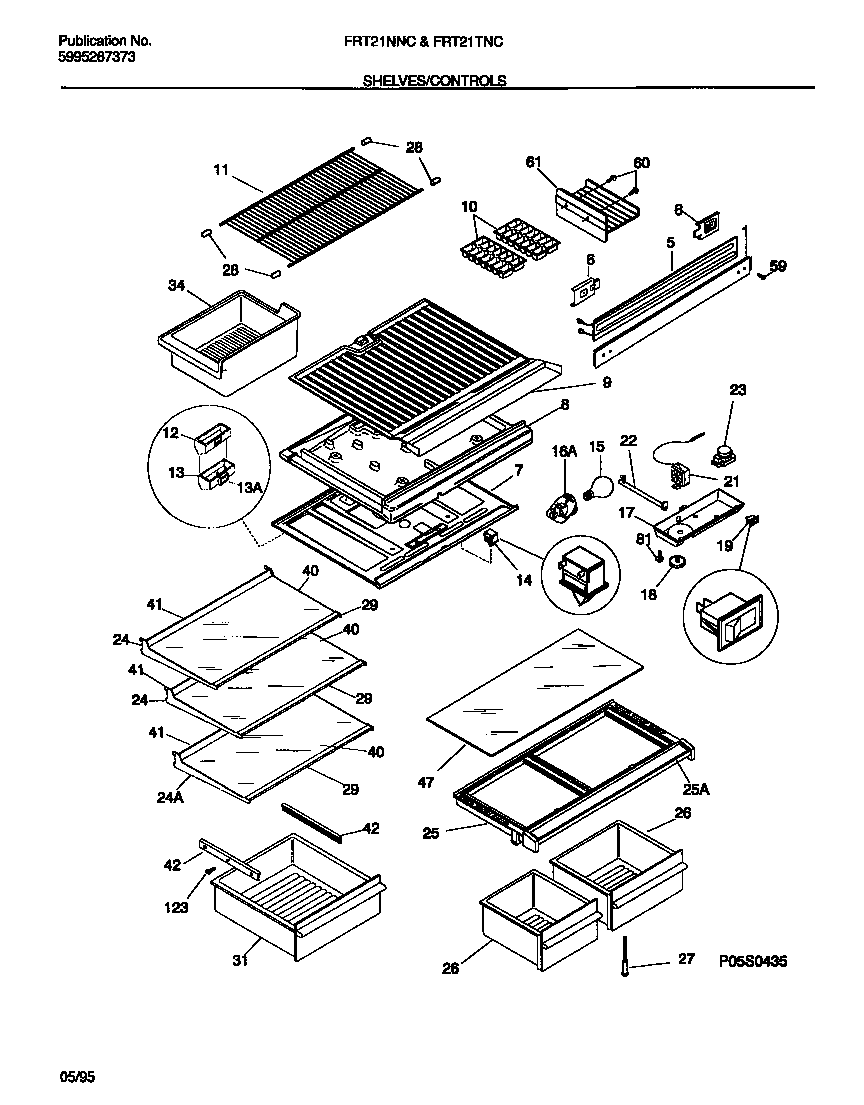

FRT21TNCD0 04 – SHELVES/CONTROLS

FRT21TNCD0 04 – SHELVES/CONTROLS

Written by

in

FRT21TNCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7WCI 3019038
8WCI 5303019039
8A3205266 Frigidaire Refrigerator Edge Protector
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303288243
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303307349
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919123
24WCI 215919118
25WCI 5303308338
25WCI 5303206538
26WCI 5303308332
26WCI 5303308330
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919420
31WCI 5303308334
345303212918 Frigidaire Refrigerator Cont
40WCI 218390527
41WCI 215919805
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
47WCI 218390523
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
