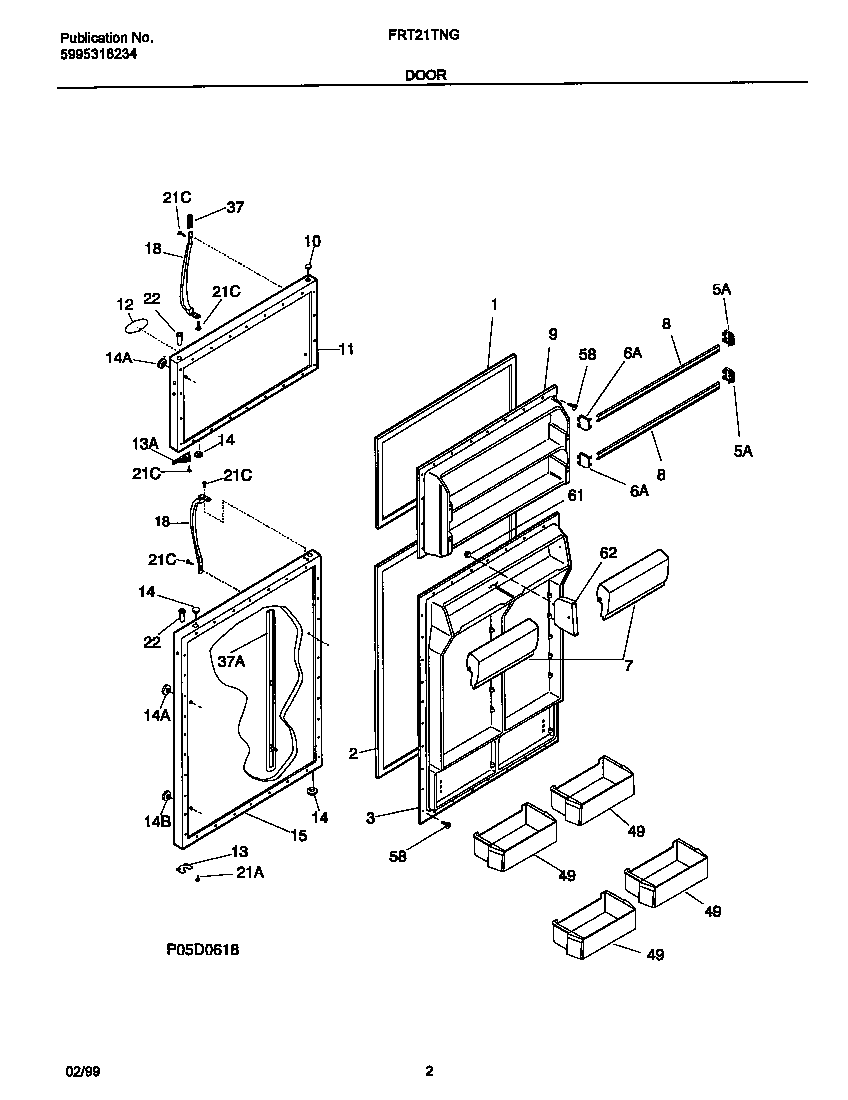

FRT21TNGD3 02 – DOORS

Products

PositionProduct
*67007INSULATION
*67006MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*67004LABEL-NAMEPLATE,ALMOND
1WCI 215608903
2WCI 218730610
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917827
12NAMEPLATE ASSY, ALMOND, WITH MAGNET
12WCI 218364002
13WCI 218800300
13WCI 218249002
14WCI 218915702
14BWCI 218074002
14AWCI 218074001
14WCI 215352211
15WCI 5303917829
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
37CWCI 218676001
37AWCI 215782300
37WCI 215867038
37WCI 215867071
37WCI 215867026
37WCI 215867059
37BWCI 215940700
49215441502 Frigidaire Refrigerator Door Bin
58B5304455651 Frigidaire Refrigerator Screw
58AScrew,No.10 pan hd ,8-18 x .5
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
