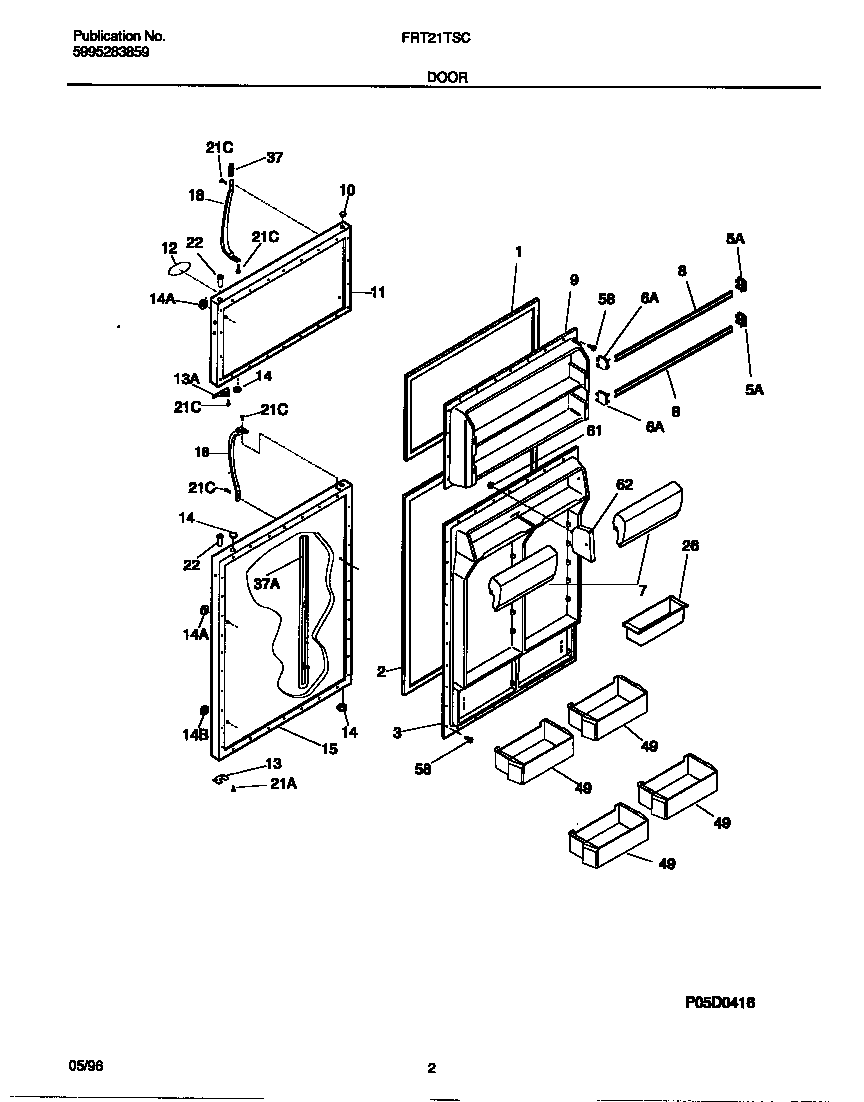

FRT21TSCD4 02 – DOOR

FRT21TSCD4 02 – DOOR

Written by

in

FRT21TSCD4 02 – DOOR

Products

PositionProduct
*88360INSULATION
1WCI 215608903
2WCI 215732403
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917827
12WCI 218364002
12NAMEPLATE ASSY, ALMOND, WITH MAGNET
12LABEL-NAMEPLATE,ALMOND
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13WCI 218249002
14WCI 218074002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14WCI 215352211
15WCI 5303917829
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215867038
37WCI 215867026
37WCI 215867059
37WCI 215867071
37BWCI 215940700
37AWCI 215782300
48NUT, 7/16 X 20, NYLON
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
