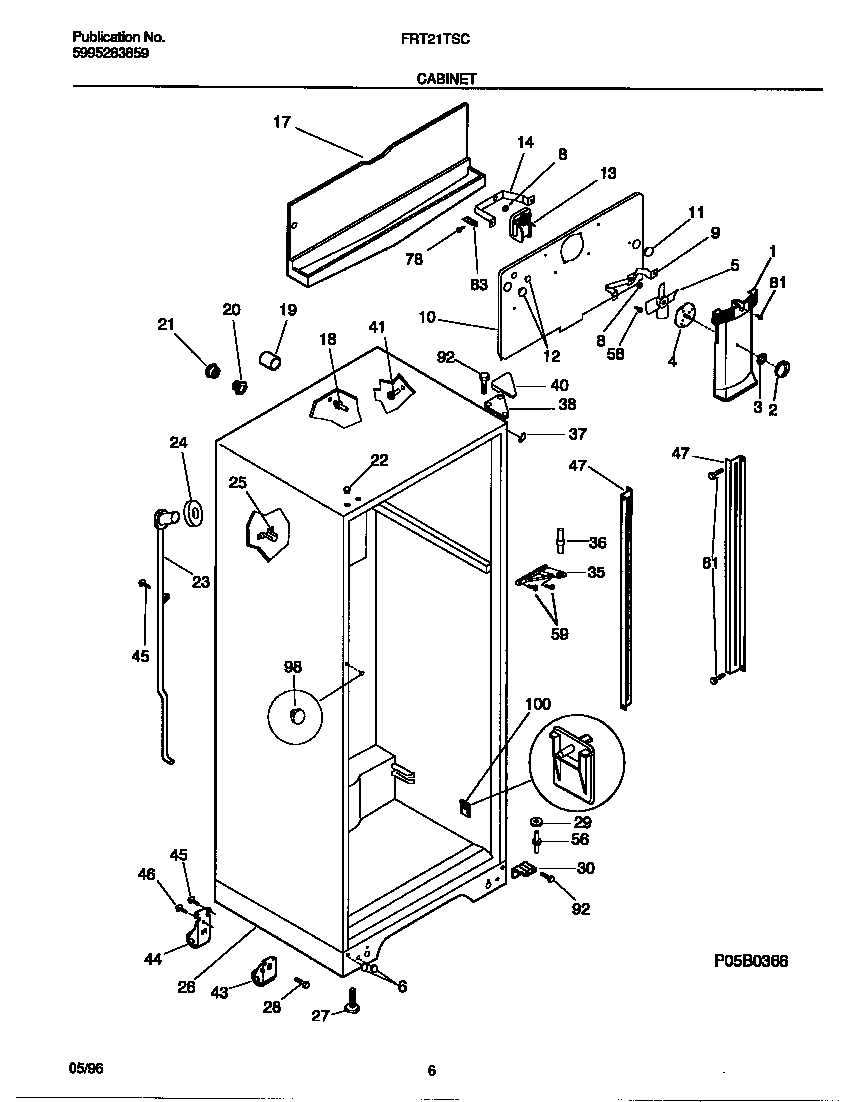

FRT21TSCD4 03 – CABINET

Products

PositionProduct
*88362WCI 218601202
*88364TOUCH, UP PAINT, ALMOND (NI)
*88361PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303307435
2WCI 5303307351
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, ALMOND, UPR HINGE HOLES
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10ACOVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14ABRACKET-MOTOR MTG, REAR
14B5309918806 Frigidaire Refrigerator Light Switch Door
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25BWCI 5303001361
25AWCI 215774100
26WCI 218605102
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 218666700
30AWCI 218220200
30CWCI 218605300
30BWCI 218605200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43BWCI 5308009790
43AWCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 215789000
48WCI 5303292395
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
1015304455650 Frigidaire Refrigerator Screw
