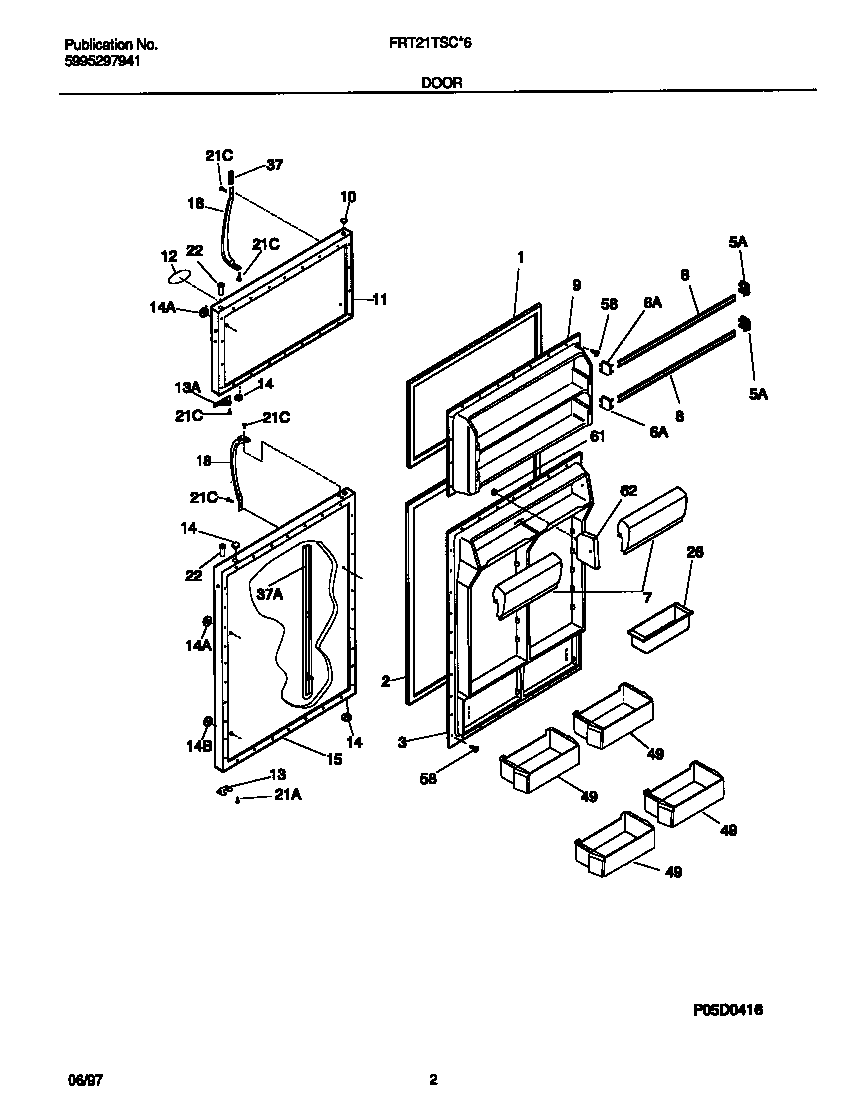

FRT21TSCW6 02 – DOOR

FRT21TSCW6 02 – DOOR

Written by

in

FRT21TSCW6 02 – DOOR

Products

PositionProduct
*49600INSULATION
1WCI 215608913
2WCI 218730609
3WCI 5303275674
55303323480 Frigidaire Refrigerator Door Bar End Cap Rh
65303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7WCI 5303308336
8WCI 215474045
9WCI 5303206631
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917826
12NAMEPLATE ASSY, WHITE, WITH MAGNET
12LABEL-NAMEPLATE,WHITE
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
14BWCI 218074002
14AWCI 218074001
15WCI 5303917828
18218668001 Frigidaire Refrigerator P-1 Handle
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26WCI 3204522
37BWCI 215940700
37WCI 215867058
37CWCI 218676001
37WCI 215867070
37AWCI 215782300
48NUT, 7/16 X 20, NYLON
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
61NUT, SELF-THREADING, 1/8
62DIVIDER-DAIRY COMPT
