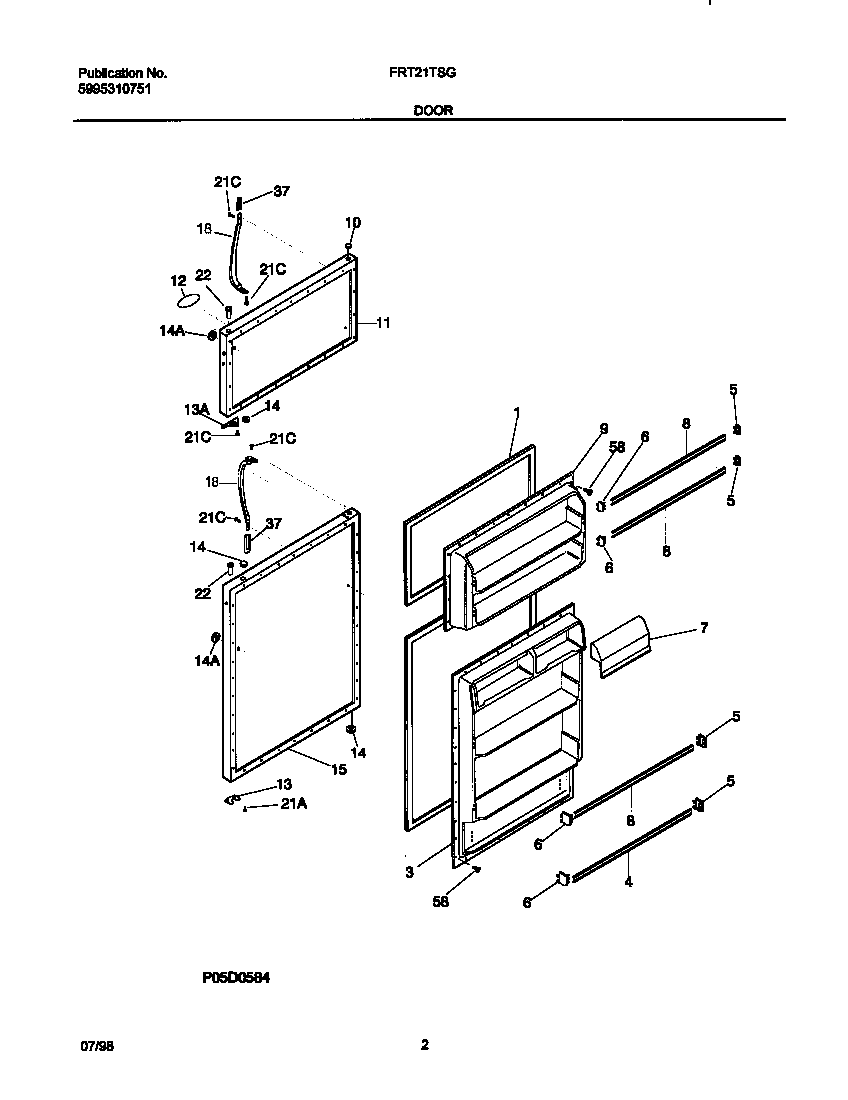

FRT21TSGD0 02 – DOOR

FRT21TSGD0 02 – DOOR

Written by

in

FRT21TSGD0 02 – DOOR

Products

PositionProduct
*15044INSULATION
*15040MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*15041WCI 218364002
*15043WCI 218676001
1WCI 215608903
2WCI 218730610
3WCI 218658901
4WCI 215139854
5WCI 5303007295
6WCI 5303007297
7WCI 5304405956
8WCI 215139853
9WCI 5318540802
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/INSULATION
12LABEL-NAMEPLATE,ALMOND
12WCI 218156515
13WCI 218249002
13WCI 218800300
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/INSUL & BRACE
18WCI 218668002
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 215867059
58Screw,No.10 pan hd ,8-18 x .5
