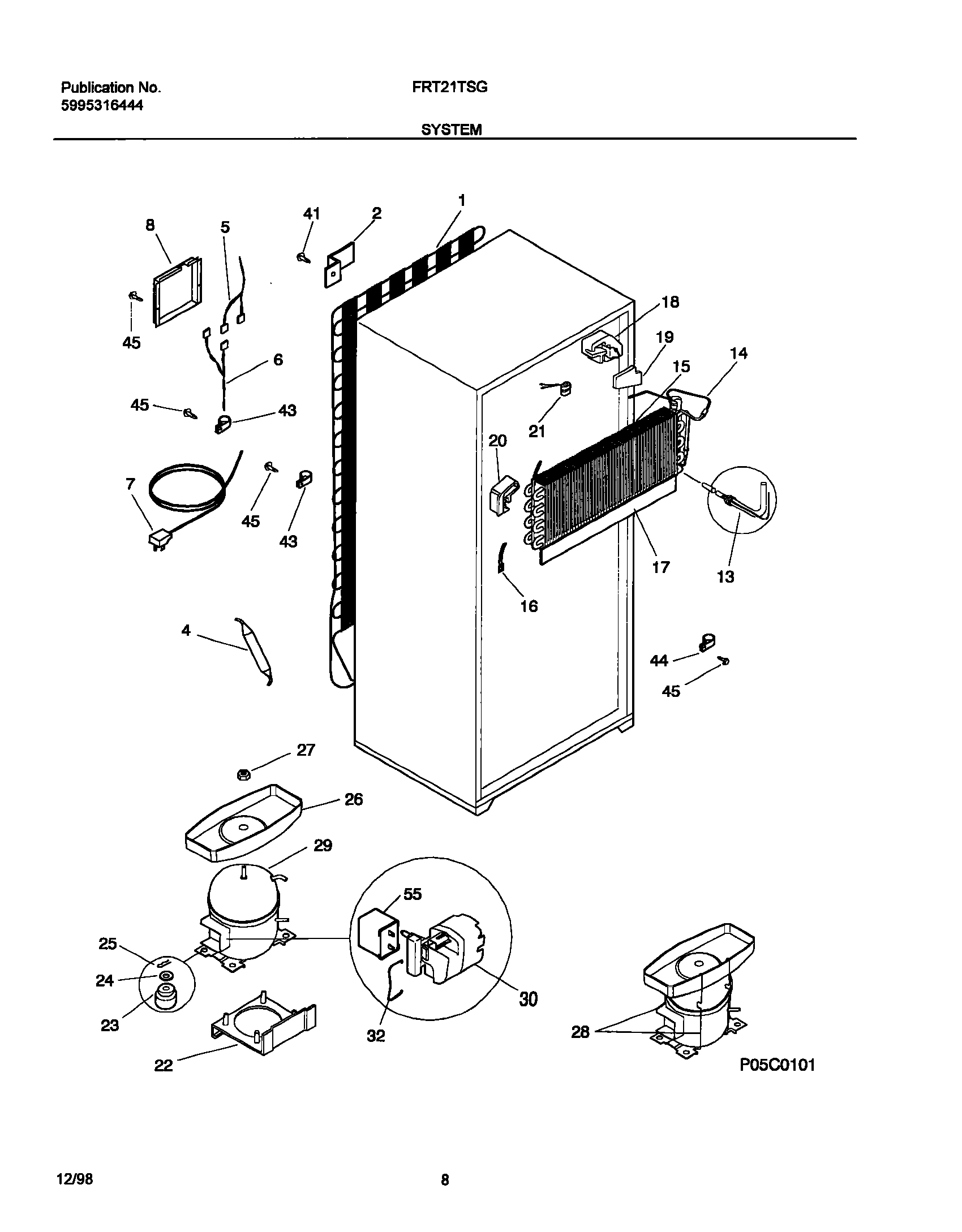

FRT21TSGW2 09 – SYSTEM

Products

Position	Product
NI	WCI 218905701
NI	HOT TUBE REPAIR KIT-SERVICE
NI	COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
1	5303017691 Frigidaire Refrigerator Spacer-Tube
1	WCI 5304406721
1	WCI 5304406039
1	WCI 5304406722
1	WCI 5304406040
1	WCI 218657100
2	BRACKET, MOUNTIN, CONDENSER, (4)
2	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	SCREW,HEX HD SER WSHR ,8-18 X 0.375
8	WCI 5303001197
8	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
13	WCI 215076405
14	5317842502 Frigidaire Defrost Heater
15	WCI 218765400
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218773700
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721101
30	WCI 216008900
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455852 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
