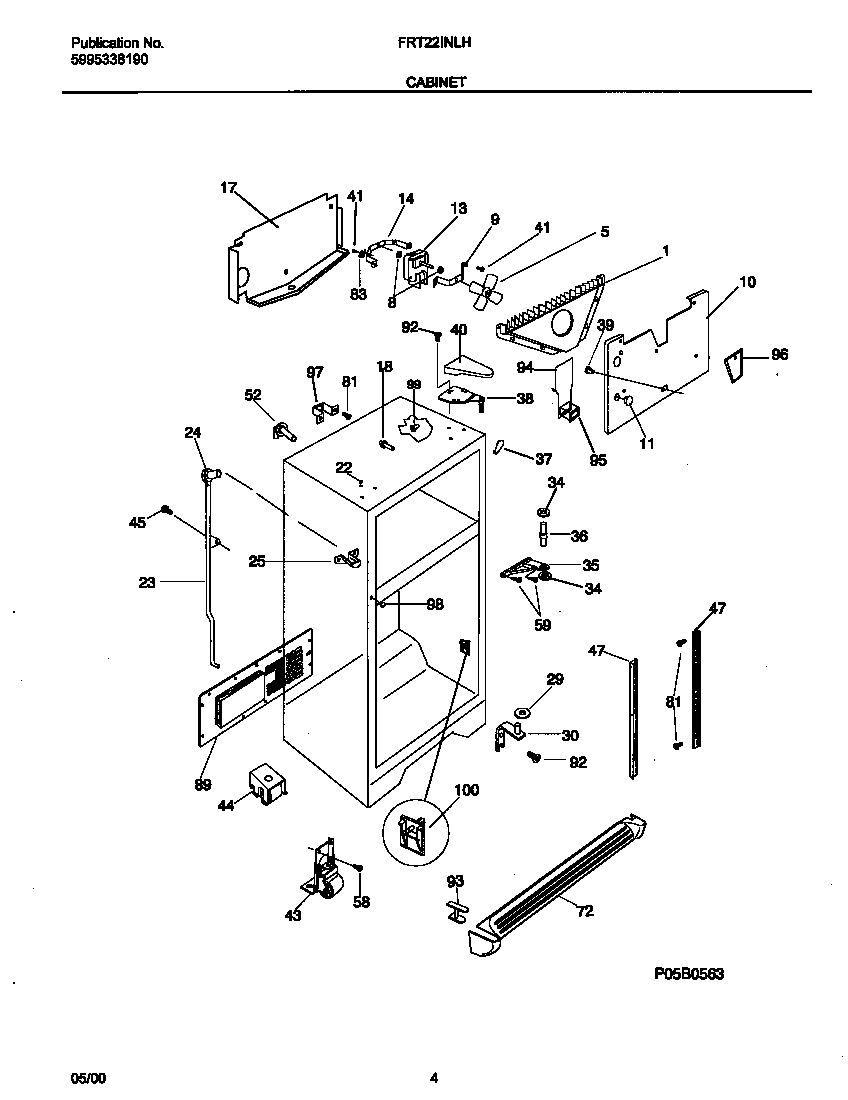

FRT22INLHD3 03 – CABINET

Products

PositionProduct
*02652PLUG, BUTTON, CABINET LINER (NI)
*02642215474201 Frigidaire Refrigerator Washer
*02650TOUCH, UP PAINT, ALMOND (NI)
*02643WCI 215003200
*02645WCI 218979601
*02644WCI 218979701
*02647SEAL-AIR DUCT COVER
*02648GROMMET-SHELF MTG,.69“ LONG
*02646WCI 5303289062
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5304415955
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218220102
36WCI 218971101
37WCI 5303321082
38WCI 218215251
39WCI 215848000
40WCI 5303318774
415308000039 Frigidaire Refrigerator Screw
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
52TUBE-WATER,ICE MOLD FILL ,ELBOW
58SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218359608
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 215741407
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
