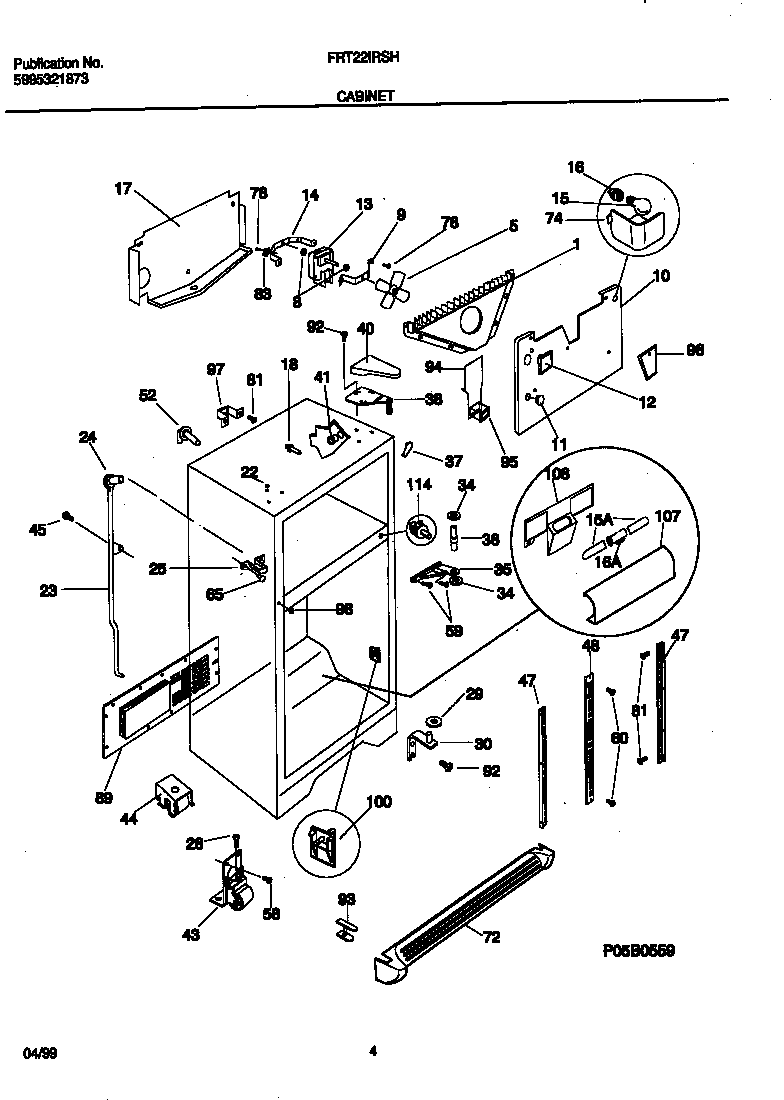

FRT22IRSHB0 03 – CABINET

Products

PositionProduct
*54525WCI 5304403492
*54522215474201 Frigidaire Refrigerator Washer
*54528SEAL-AIR DUCT COVER
*54527SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*54523WCI 218730800
*54524WCI 218730700
*54526GROMMET-SHELF MTG,.69“ LONG
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5304405085
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15WCI 218708700
16SOCKET-LIGHT/LAMP
16WCI 5303299157
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218780003
36WCI 215095900
37WCI 5303321083
38WCI 218215216
40WCI 5303323268
41GROMMET-SHELF MTG,1.25“ LONG
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 218877701
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
65WCI 5303001361
72WCI 218359612
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218835902
108WCI 218834202
114WCI 5303299156
