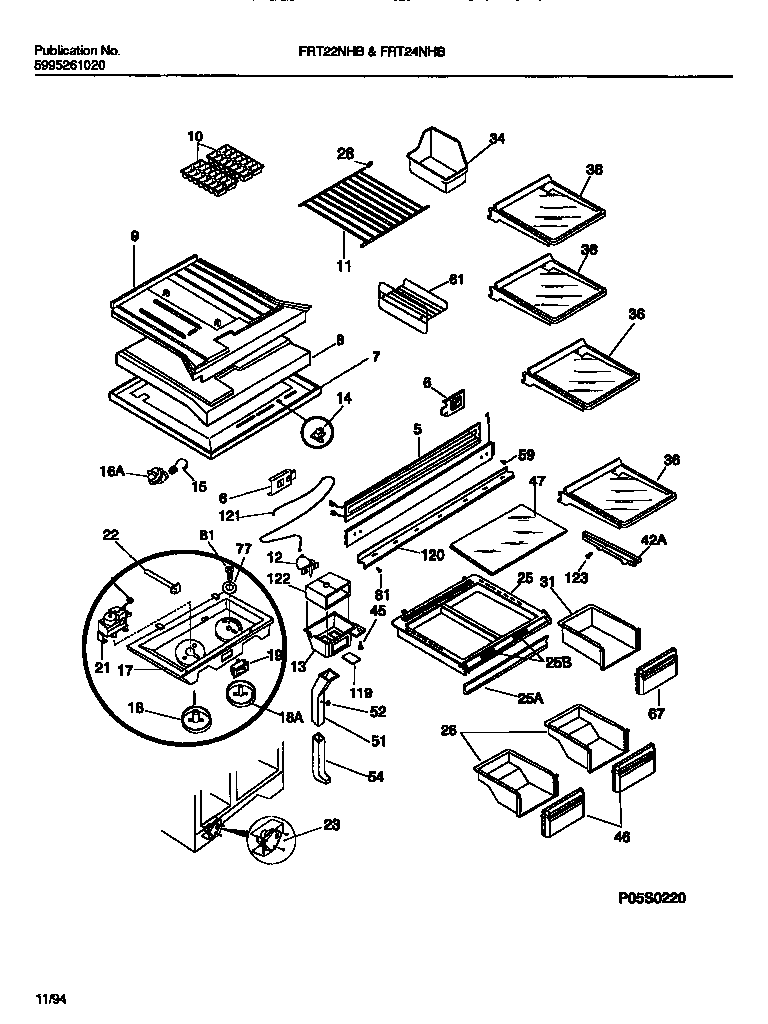

FRT22NHBW2 05 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT22NHBW2 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT22NHBW2 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*52004WCI 215848000
*52003WCI 215339900
1WCI 215002201
5WCI 215096800
6WCI 218279800
7WCI 215055803
7WCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303297948
11SPACER-FRZR SHELF
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12WCI 215132300
12SPACER-AIR DEFLECTR
12WASHER-AIR DEFLECTR
13WCI 215420300
13NUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 215932903
17NUT-ANCHOR
18AWCI 5303296668
18WCI 5303296667
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303001260
21WCI 5303305487
22WCI 215932100
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23SHIELD-DEFROST TIMR,BTM
23COVER-DEFROST TIMER, TOP
25WCI 215216616
25AWCI 5303298486
25B5303307715 Frigidaire Refrigerator Humidity Control
26WCI 215298001
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215406102
42AHANGER-PAN/TRAY, RH
42AWCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 5303292657
47WCI 5303304625
51WCI 215133300
51WCI 215133200
51WCI 215132801
52WCI 215133000
52WCI 215132901
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303292662
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121WCI 215364001
121NUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123215005101 Frigidaire Refrigerator Screw
