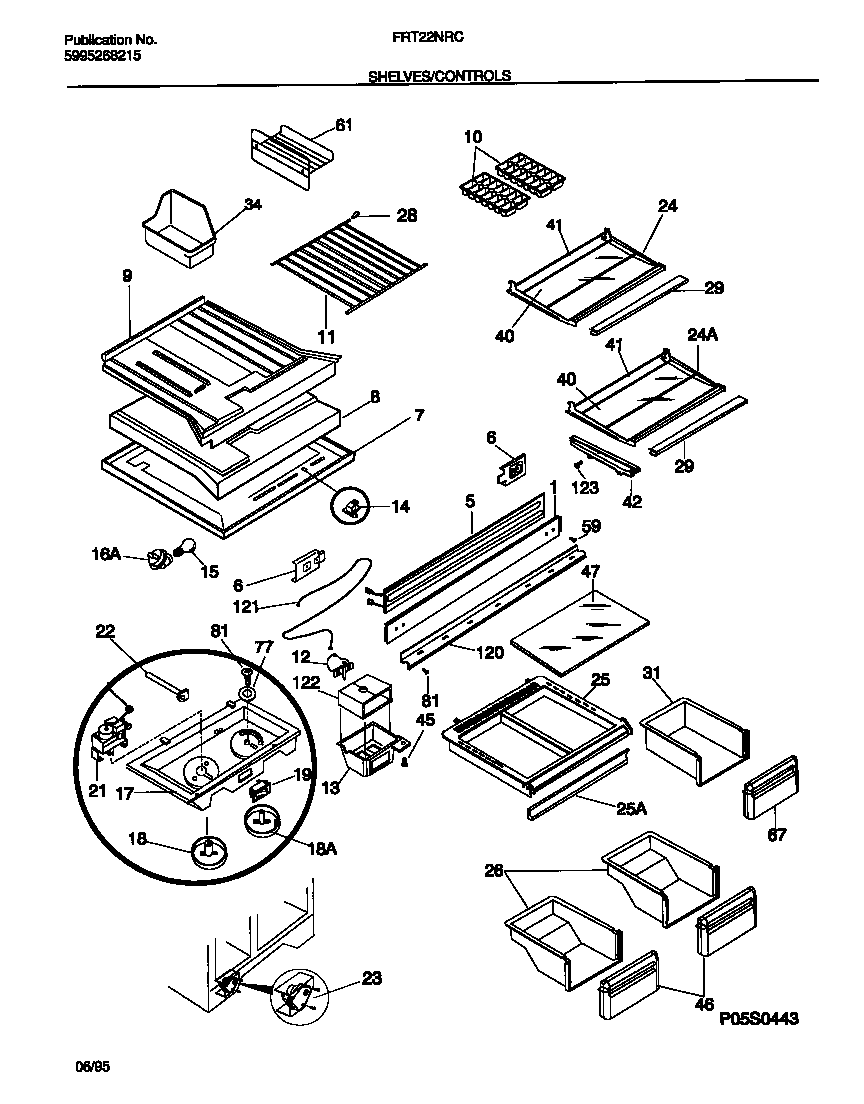

FRT22NRCD0 04 – SHELVES/CONTROLS

FRT22NRCD0 04 – SHELVES/CONTROLS

Written by

in

FRT22NRCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
*79964WCI 215848000
1WCI 215002201
5WCI 215096800
6WCI 218279800
7WCI 215055803
7AWCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER-FRZR SHELF
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303297948
12ASPACER-AIR DEFLECTR
12BWASHER-AIR DEFLECTR
12WCI 215132300
13WCI 215420300
13ANUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215932904
17ANUT-ANCHOR
18AWCI 5303308310
18WCI 5303308309
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303305487
22WCI 215932100
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23ACOVER-DEFROST TIMER, TOP
23CSHIELD-DEFROST TIMR,BTM
23B5304455649 Frigidaire Refrigerator Screw
24WCI 215919142
24AWCI 215919144
25WCI 215216638
25AWCI 5303310091
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919421
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
40WCI 218390590
41WCI 215919806
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 5303310089
47WCI 218390591
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303310090
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121ANUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 218561203
122WCI 218561201
123215005101 Frigidaire Refrigerator Screw
