FRT22NRCD1 02 – DOOR

FRT22NRCD1 02 – DOOR

Written by

in

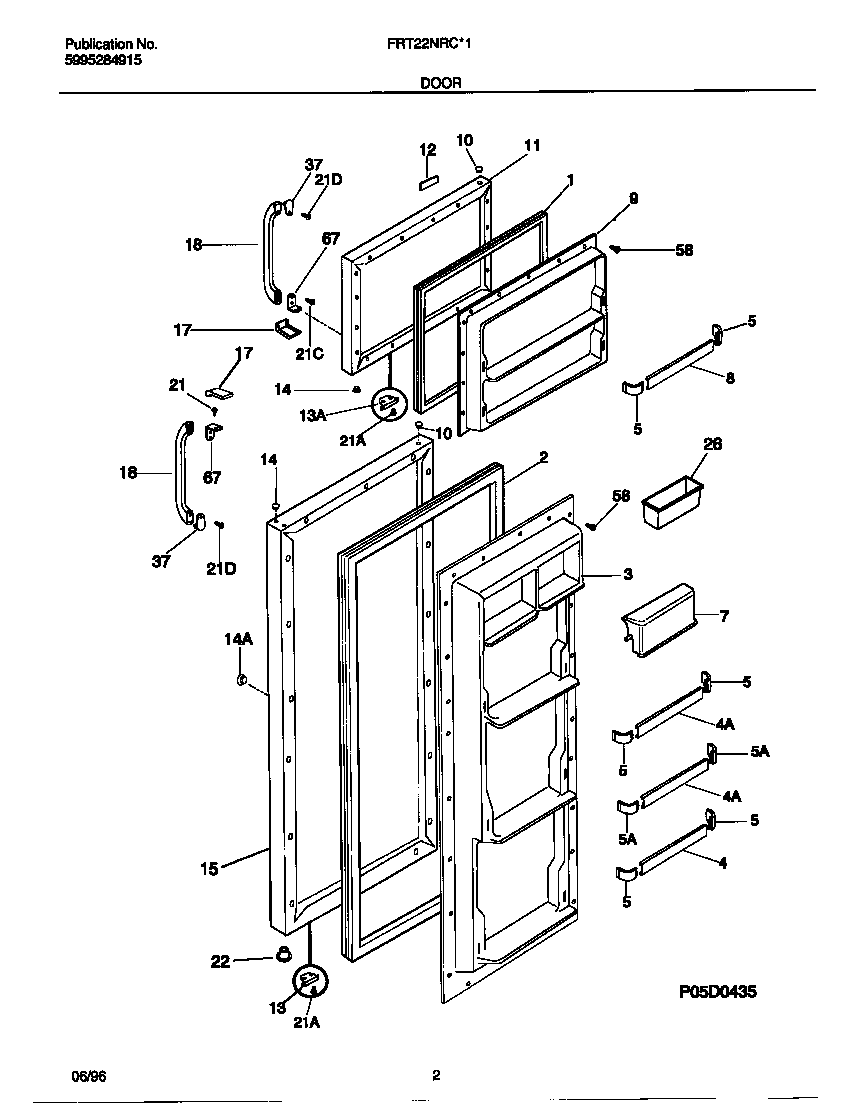

FRT22NRCD1 02 – DOOR

Products

PositionProduct
*42960INSULATION
1WCI 215608905
2WCI 5303292370
3WCI 218477601
4215516220 Frigidaire Refrigerator Door Rack
5WCI 215251501
5WCI 215251401
7WCI 5303310094
9WCI 215278301
10WCI 5303292414
11WCI 215676811
12WCI 218364002
12NAMEPLATE ASSY, ALMOND, WITH MAGNET
12LABEL-NAMEPLATE,ALMOND
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 215030011
13WCI 5303289522
14WCI 215562111
14WCI 215352111
15WCI 215677011
17WCI 215361311
18WCI 215339611
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21WCI 215416100
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21WCI 215659600
22WCI 5303289320
26WCI 3204522
37WCI 215361411
58216858001 Frigidaire Refrigerator Screw
67WCI 215367300
