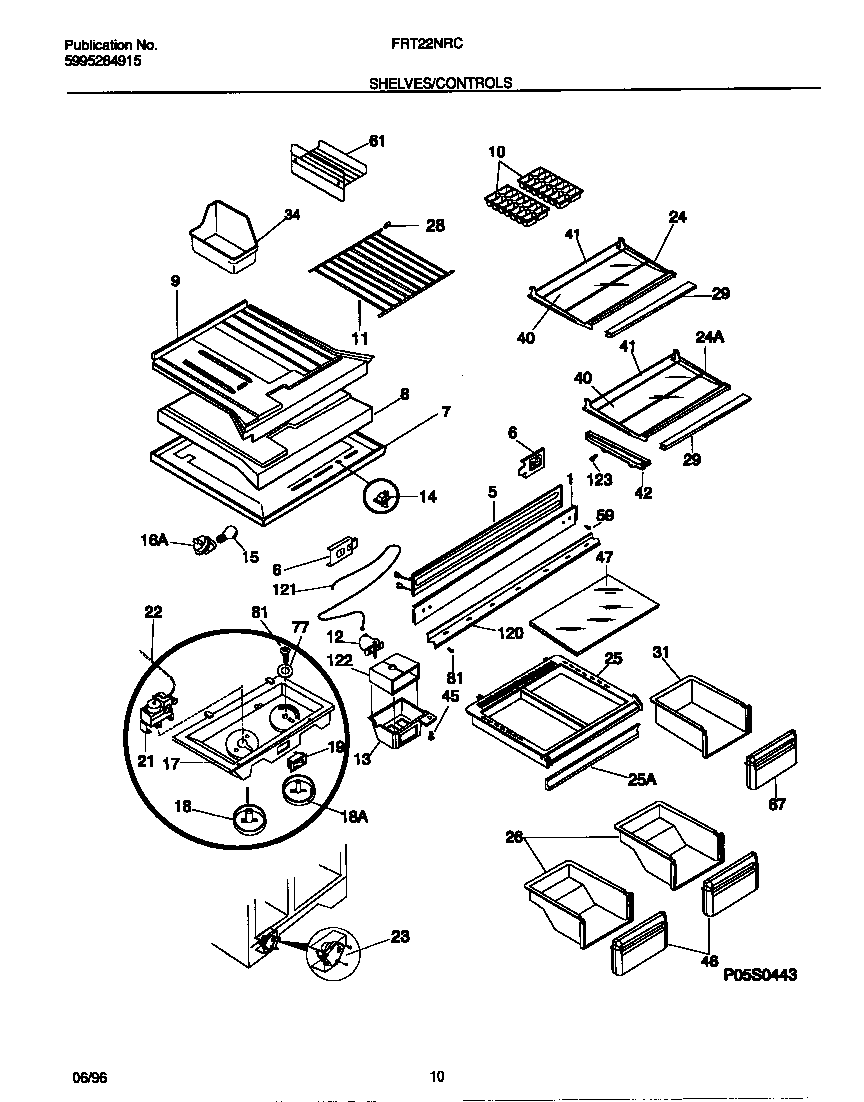

FRT22NRCD1 05 – SHELVES/CONTROLS

FRT22NRCD1 05 – SHELVES/CONTROLS

Written by

in

FRT22NRCD1 05 – SHELVES/CONTROLS

Products

PositionProduct
*42966WCI 215359900
*42968WCI 218660800
*42967WCI 215848000
*42965WCI 215339100
1WCI 215002201
5WCI 215634100
6WCI 218279800
7AWCI 218646701
7BWCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303297948
11BSPACER-FRZR SHELF
11CSPACER, FRZR SHELF (NOT ILLUSTRATED)
12BWASHER-AIR DEFLECTR
12AWCI 218634902
12CWCI 218634800
13AWCI 218629900
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932905
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303319419
22WCI 218660701
23B5304455649 Frigidaire Refrigerator Screw
23DSHIELD-DEFROST TIMR,BTM
23CCOVER-DEFROST TIMER, TOP
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
24WCI 215919142
24WCI 215919144
25WCI 215216638
25WCI 5303292391
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919421
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
40WCI 218390590
41WCI 215919806
42AHANGER-PAN/BASKET, LH
42BHANGER-PAN/BASKET, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 5303310089
47WCI 218390591
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303310090
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122AWCI 218561201
122BWCI 218561203
123215005101 Frigidaire Refrigerator Screw
