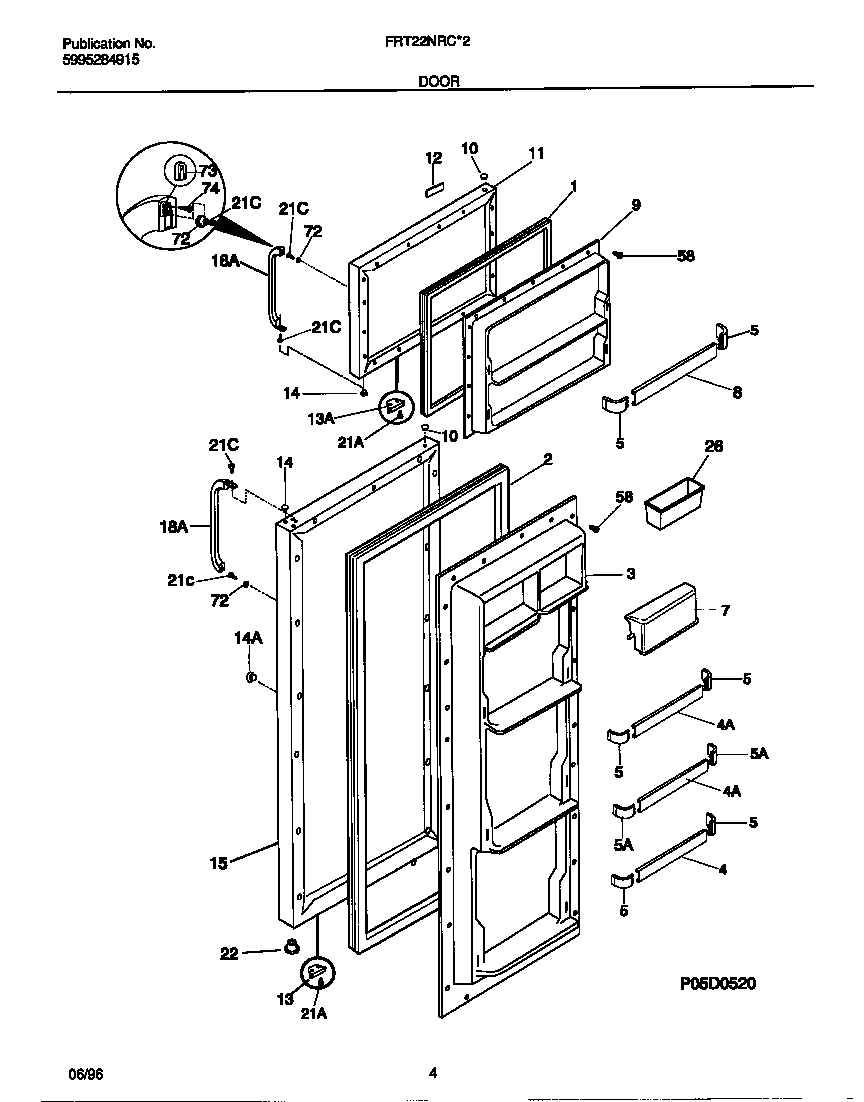

FRT22NRCD2 03 – DOOR

FRT22NRCD2 03 – DOOR

Written by

in

FRT22NRCD2 03 – DOOR

Products

PositionProduct
*42961INSULATION
1WCI 215608905
2WCI 5303292370
3WCI 218477601
4215516220 Frigidaire Refrigerator Door Rack
5WCI 215251501
5WCI 215251401
7WCI 5303310094
9WCI 215278301
10WCI 5303292414
11WCI 5303917853
12LABEL-NAMEPLATE,ALMOND
12WCI 218364002
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 215030011
13WCI 5303289522
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917855
18WCI 218397502
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218252201 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
