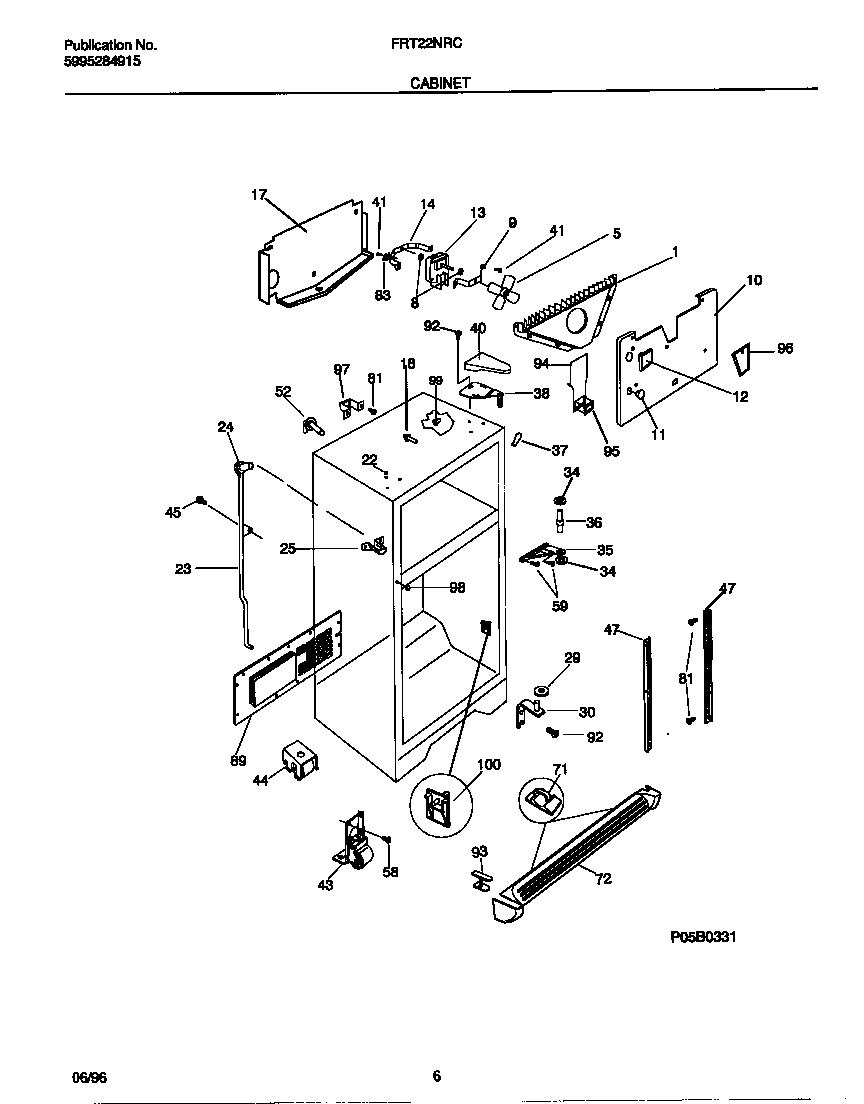

FRT22NRCD2 04 – CABINET

Products

PositionProduct
*42962TOUCH, UP PAINT, ALMOND (NI)
*42964PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13B215474201 Frigidaire Refrigerator Washer
13A5300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25BWCI 5303001361
25AWCI 5303292412
29WCI 215003200
30CWCI 218730800
30DWCI 218730900
30AWCI 218150800
30BWCI 218730700
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218158002
40WCI 5303318774
415308000039 Frigidaire Refrigerator Screw
43BWCI 5303289062
43AWCI 218615300
43CSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
52BPLUG-WTR INLET TUBE
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94AWCI 5303319993
94BSEAL-AIR DUCT COVER
95WCI 218663100
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99BGROMMET-SHELF MTG,.69“ LONG
99AGROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
