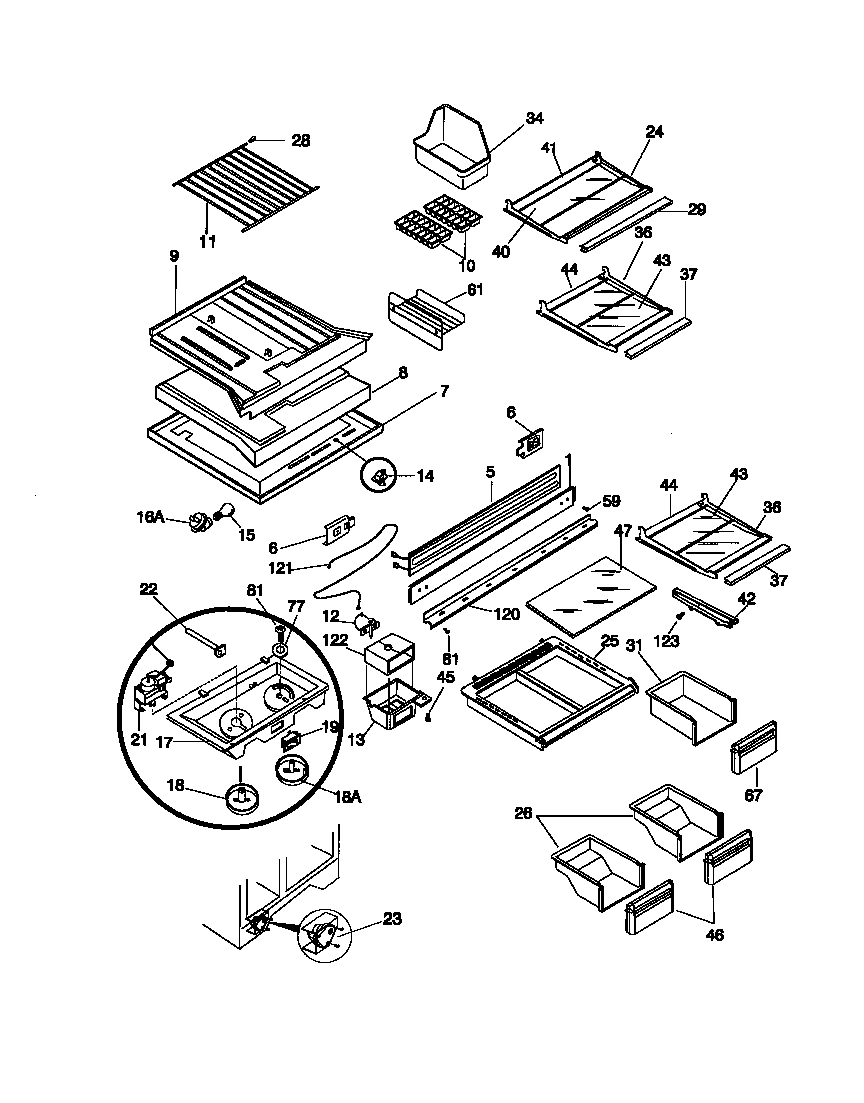

FRT22PRCD0 04 – SHELVES, CONTROLS

FRT22PRCD0 04 – SHELVES, CONTROLS

Written by

in

FRT22PRCD0 04 – SHELVES, CONTROLS

Products

PositionProduct
*60405WCI 215848000
1WCI 215002201
5WCI 215096800
6WCI 218279800
7WCI 215055803
7WCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER-FRZR SHELF
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303297948
12BSPACER-AIR DEFLECTR
12AWCI 215132300
12CWASHER-AIR DEFLECTR
13BNUT, ANCHOR (NI)
13AWCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932904
18WCI 5303308309
18WCI 5303308310
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303001260
21WCI 5303305487
22WCI 215932100
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23C5304455649 Frigidaire Refrigerator Screw
23BCOVER-DEFROST TIMER, TOP
23DSHIELD-DEFROST TIMR,BTM
24WCI 215919142
25WCI 215216638
25WCI 5303310091
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919421
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215919141
37WCI 215919427
40WCI 218390590
41WCI 215919806
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
43WCI 218390599
44WCI 215919812
455304455651 Frigidaire Refrigerator Screw
46WCI 5303310089
47WCI 218390591
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303310090
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122WCI 215132501
123215005101 Frigidaire Refrigerator Screw
