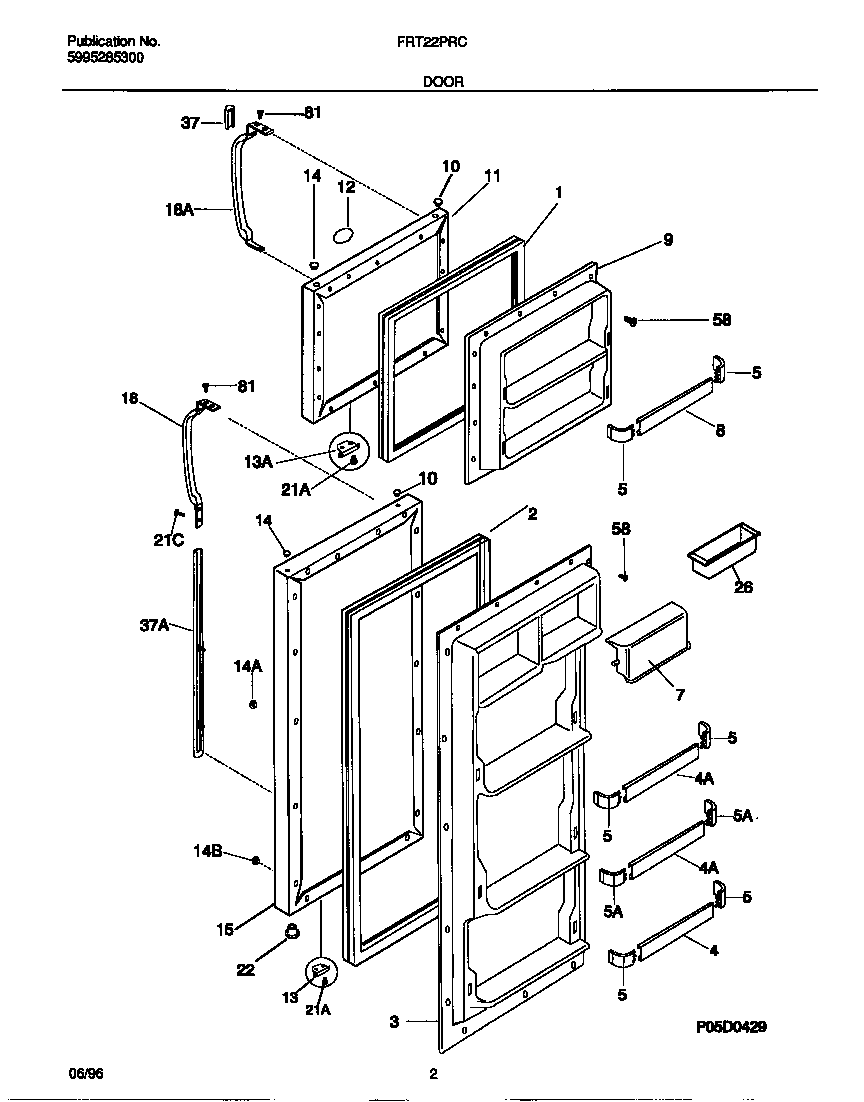

FRT22PRCW1 02 – DOOR

FRT22PRCW1 02 – DOOR

Written by

in

FRT22PRCW1 02 – DOOR

Products

PositionProduct
*62720INSULATION
1WCI 215608915
2WCI 5303292369
3WCI 218477601
4215516220 Frigidaire Refrigerator Door Rack
5WCI 215251401
5WCI 215251501
7WCI 5303310094
9WCI 215278301
10WCI 5303292413
11PANEL, FRZR DOOR, WHITE, W/FOAM INSULTN
12WCI 218364004
12WCI 215008601
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
13WCI 215030001
14WCI 215352101
14WCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917504
18WCI 215826301
18WCI 215826201
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
37WCI 215941101
37WCI 215867057
37WCI 215940700
585304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
