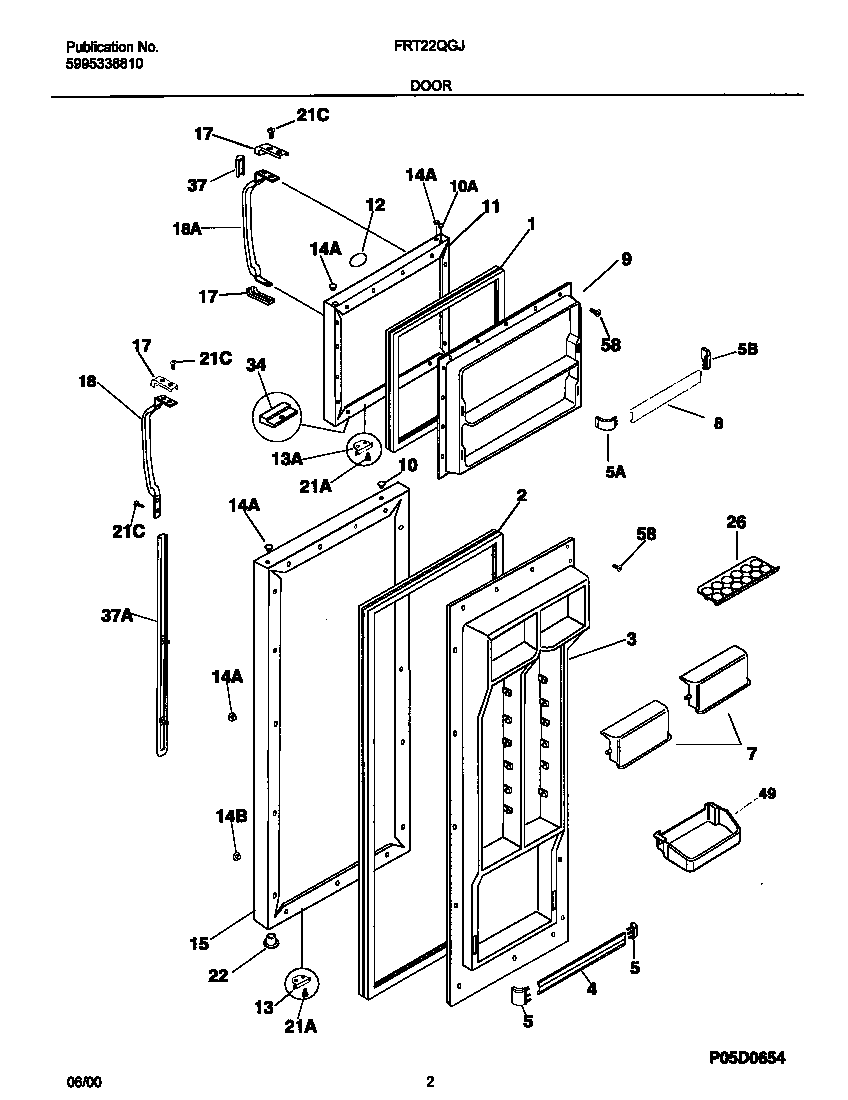

FRT22QGJB2 02 – DOOR

FRT22QGJB2 02 – DOOR

Written by

in

FRT22QGJB2 02 – DOOR

Products

PositionProduct
*45204INSULATION
*45202WCI 215008606
*45203TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608925
2WCI 218730616
3WCI 215784001
4215516220 Frigidaire Refrigerator Door Rack
5218809801 Frigidaire Refrigerator Support-Door Rack
5218809701 Frigidaire Refrigerator Door Rack Support
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303304569
9WCI 215278301
10WCI 218696503
10WCI 5303299154
11WCI 5303917993
12WCI 218364006
13WCI 215030018
13WCI 5303289522
14WCI 218696603
14240494003 Frigidaire Refrigerator Plug-Button
15WCI 5303918021
17WCI 218696406
18WCI 215981320
18WCI 215983220
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26215817806 Frigidaire Refrigerator Egg Tray
34WCI 218783202
37WCI 218549842
37AWCI 215782300
37BWCI 215940700
37CWCI 218676003
37WCI 218811612
49215441502 Frigidaire Refrigerator Door Bin
58218781101 Frigidaire Handle Screw
