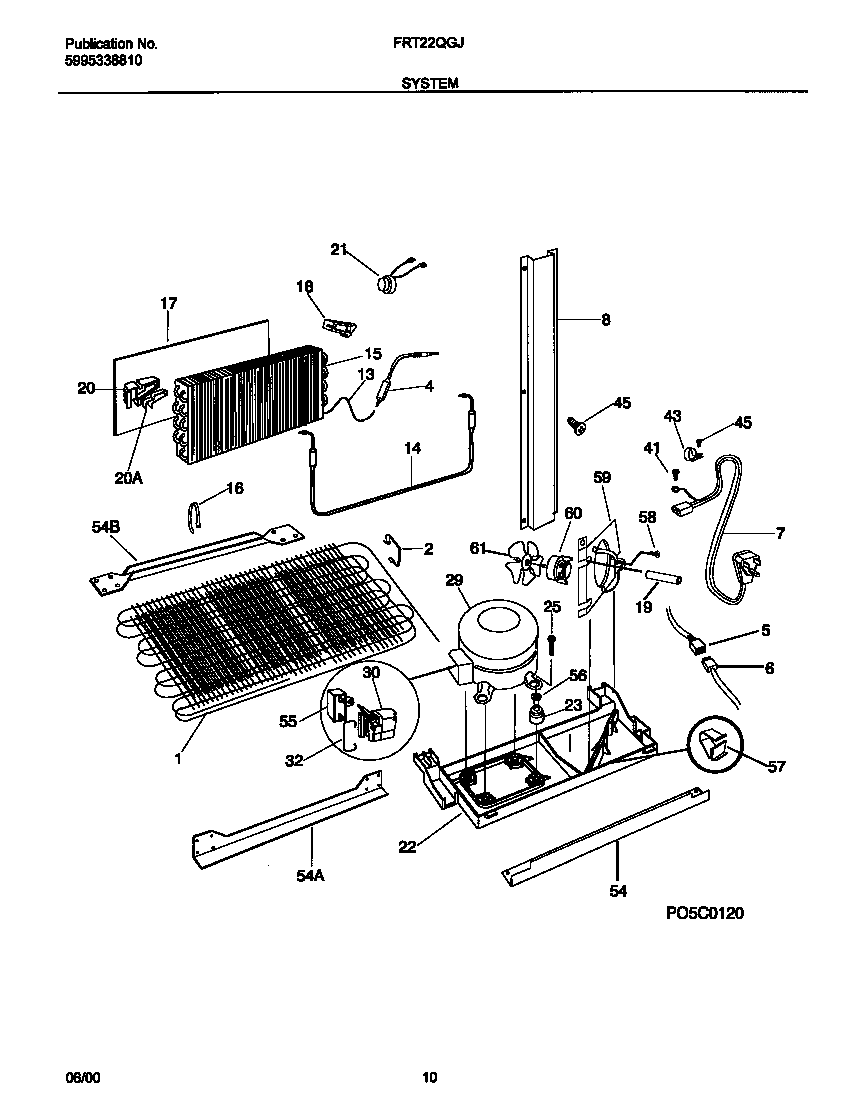

FRT22QGJB2 05 – SYSTEM

Products

Position	Product
*45248	WCI 215004700
*45239	SPACER-COND TUBE,BLACK
*45240	SPACER TUBE
*45250	HOT TUBE REPAIR KIT, SERVICE
*45243	SCREW,HEX HD SER WSHR ,8-18 X 0.375
*45242	5308000133 Frigidaire Refrigerator Clamp
*45244	5304455852 Frigidaire Refrigerator Screw
*45246	WCI 218897001
*45249	WCI 215004800
*45247	SEAL-FOAM,COND FAN SHROUD
*45241	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
1	WCI 218787700
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218965601
6	WCI 218965901
7	WCI 215459201
8	WCI 218803400
13	WCI 218168602
14	5317842502 Frigidaire Defrost Heater
15	WCI 5303321220
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	WCI 218631200
20	WCI 5303292406
20	WCI 5303292405
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304475098 Frigidaire Refrigerator Compressor Kit
30	WCI 218721101
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
54	WCI 5303289027
54	WCI 5303289292
54	WCI 5303289311
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61	WCI 5303289032
