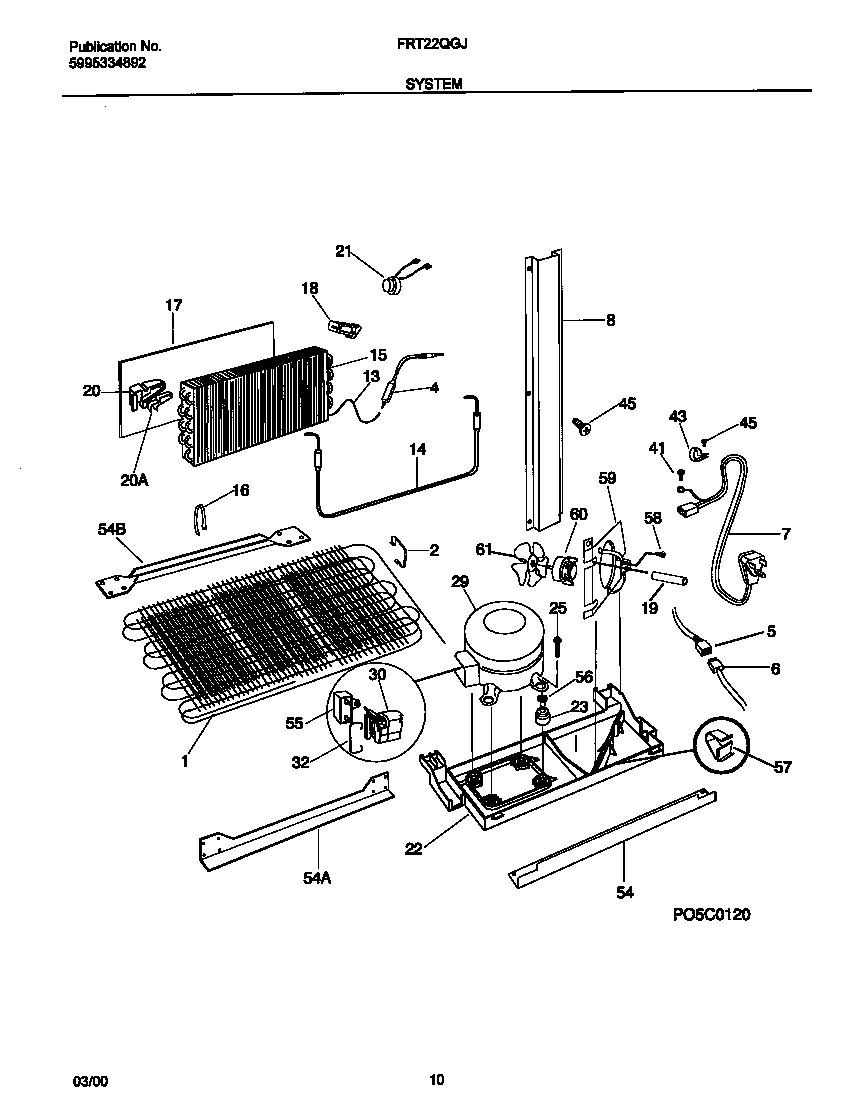

FRT22QGJW1 05 – SYSTEM

Products

Position	Product
*51686	WCI 215004700
*51677	SPACER-COND TUBE,BLACK
*51688	HOT TUBE REPAIR KIT, SERVICE
*51680	5308000133 Frigidaire Refrigerator Clamp
*51681	5304455651 Frigidaire Refrigerator Screw
*51678	SPACER TUBE
*51685	SEAL-FOAM,COND FAN SHROUD
*51684	WCI 218897001
*51687	WCI 215004800
*51682	SCREW,HEX HD SER WSHR ,8-18 X 0.375
*51679	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
1	WCI 218787700
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 218965601
6	WCI 218965901
7	WCI 215459201
8	WCI 218803400
13	WCI 218168602
14	5317842502 Frigidaire Defrost Heater
15	WCI 5303321220
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	WCI 218631200
20	WCI 5303292406
20	WCI 5303292405
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304475098 Frigidaire Refrigerator Compressor Kit
30	5304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32	CLAMP,ELEC CONT MTG ,COMPRESSOR
41	5308000039 Frigidaire Refrigerator Screw
45	5304455852 Frigidaire Refrigerator Screw
54	WCI 5303289311
54	WCI 5303289292
54	WCI 5303289027
55	WCI 218909902
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61	WCI 5303289032
