FRT22QGJW2 02 – DOOR

FRT22QGJW2 02 – DOOR

Written by

in

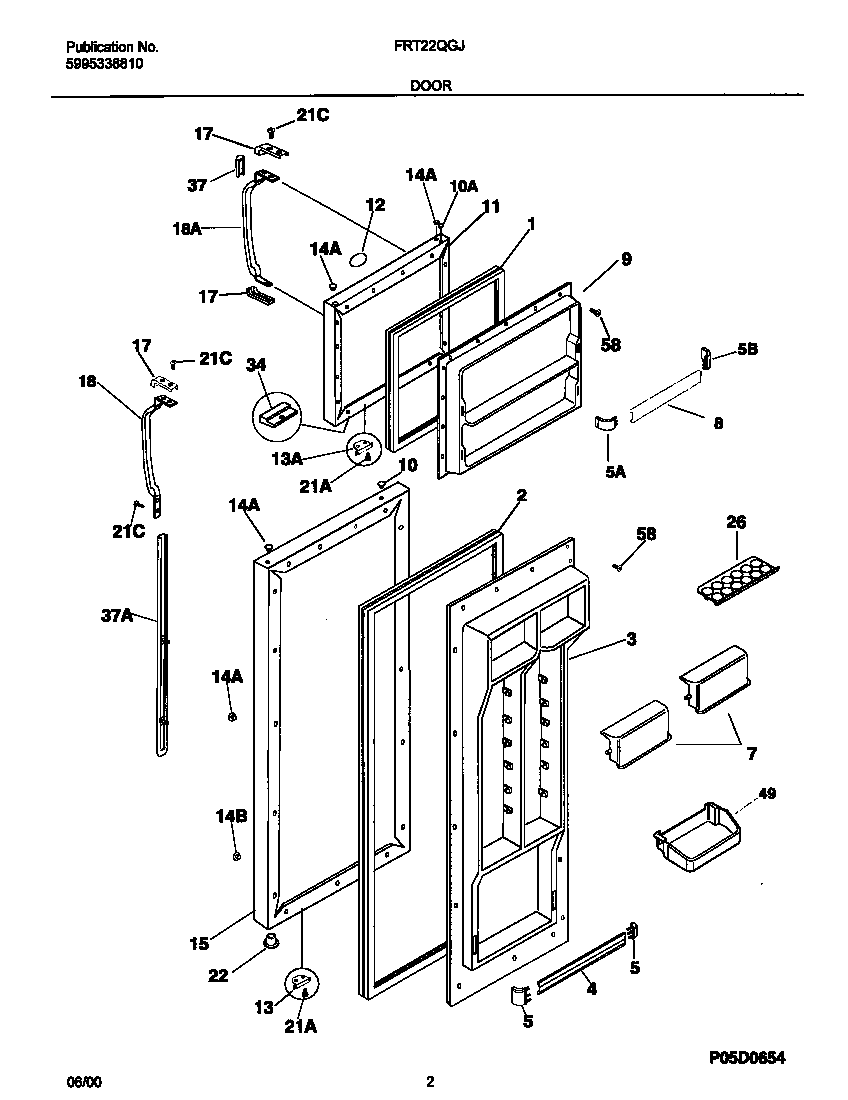

FRT22QGJW2 02 – DOOR

Products

PositionProduct
*45204INSULATION
*45200WCI 215008604
*45203TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608915
2WCI 218730614
3WCI 215784001
4215516220 Frigidaire Refrigerator Door Rack
5218809801 Frigidaire Refrigerator Support-Door Rack
5218809701 Frigidaire Refrigerator Door Rack Support
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303304569
9WCI 215278301
10WCI 5303292413
10WCI 218696501
11WCI 5303917991
12WCI 218364004
13WCI 5303289522
13WCI 215030001
14WCI 218696601
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917983
17WCI 218696401
18WCI 215981301
18WCI 215983201
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26215817806 Frigidaire Refrigerator Egg Tray
34WCI 218783201
37CWCI 218676003
37BWCI 215940700
37WCI 215867096
37AWCI 215782300
37WCI 218549840
49215441502 Frigidaire Refrigerator Door Bin
58218781101 Frigidaire Handle Screw
