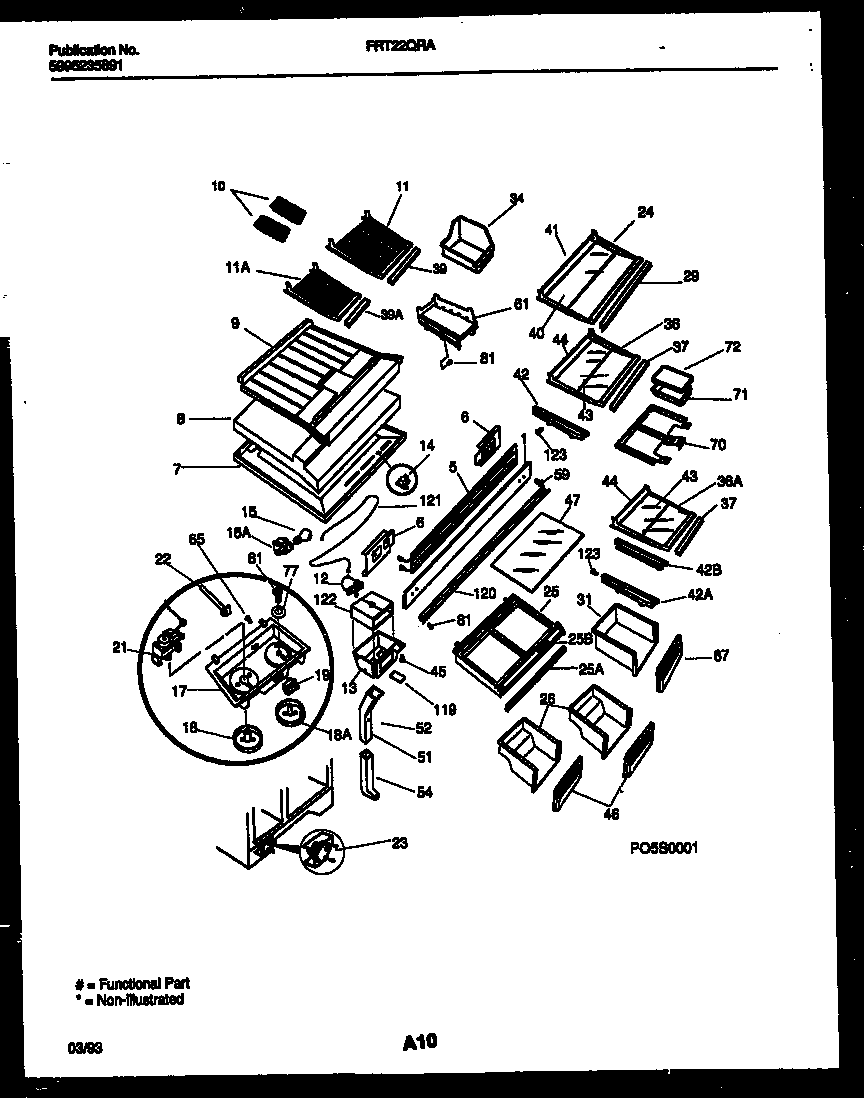

FRT22QRAW0 06 – SHELVES AND SUPPORTSadmin2025-04-26T10:54:58+00:00FRT22QRAW0 06 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 215002201 |
| 5 | WCI 215096800 |
| 6 | WCI 215096700 |
| 7 | WCI 215055801 |
| 7 | WCI 5303001380 |
| 8 | WCI 215062700 |
| 8 | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | WCI 215058300 |
| 10 | TRAY-ICE, PLASTIC, (2) |
| 11A | WCI 5303292384 |
| 11 | WCI 5303292383 |
| 12 | WASHER-AIR DEFLECTR |
| 12 | SPACER-AIR DEFLECTR |
| 12 | WCI 215132300 |
| 13 | NUT, ANCHOR (NI) |
| 13 | WCI 215132600 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17 | WCI 5303292409 |
| 17 | WCI 215280700 |
| 18 | WCI 5303292410 |
| 18A | WCI 5303292411 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21 | WCI 5303292452 |
| 21 | WCI 5303001260 |
| 22 | HOUSING, CONTRL CAP TUBE |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23 | 5304455649 Frigidaire Refrigerator Screw |
| 23 | SHIELD-DEFROST TIMR,BTM |
| 23 | COVER-DEFROST TIMER, TOP |
| 24 | WCI 215069017 |
| 25B | 5303307715 Frigidaire Refrigerator Humidity Control |
| 25 | WCI 215216601 |
| 25A | WCI 5303292391 |
| 26 | WCI 5303292386 |
| 29 | WCI 5303292381 |
| 29 | WCI 5303209274 |
| 31 | WCI 5303292388 |
| 34 | 5303212918 Frigidaire Refrigerator Cont |
| 36A | WCI 215069018 |
| 36 | WCI 215069016 |
| 37 | RETAINER-GLASS, (3) (NON-ILLUSTRATED) |
| 37 | TRIM-HALF SHELF, FRONT, (2) |
| 39A | WCI 5303292385 |
| 39 | WCI 215217506 |
| 40 | WCI 5303292382 |
| 41 | WCI 5303292380 |
| 42B | HANGER-PAN/BASKET, RH |
| 42 | WCI 215002301 |
| 42A | HANGER-PAN/BASKET, LH |
| 42A | HANGER-PAN/TRAY, RH |
| 43 | GLASS-SHELF,HALF SHELF,(2) |
| 44 | TRIM-HALF SHELF, SNAP-ON, REAR, (2) |
| 45 | 5304455651 Frigidaire Refrigerator Screw |
| 46 | WCI 5303292387 |
| 47 | INSERT-PAN COVER, GLASS |
| 51 | WCI 215132801 |
| 51 | WCI 215133200 |
| 51 | WCI 215133300 |
| 52 | WCI 215132901 |
| 52 | WCI 215133000 |
| 54 | WCI 215133100 |
| 59 | WCI 215097000 |
| 61 | WCI 08009824 |
| 65 | WCI 5303274946 |
| 67 | WCI 5303292389 |
| 70 | WCI 5303275653 |
| 71 | DISH-CORNING GLASS |
| 72 | WCI 5303275754 |
| 77 | WASHER-NYLON,3/16 X 5/8 OD |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 119 | WCI 215132700 |
| 120 | WCI 215097101 |
| 121 | NUT,PUSH-ON ,DAMPER CABLE |
| 121 | WCI 215364001 |
| 122 | WCI 215132502 |
| 123 | WCI 08014528 |
| 72988 | WCI 215339900 |
| 72990 | LOCK-SHELF TRIM, REAR |
