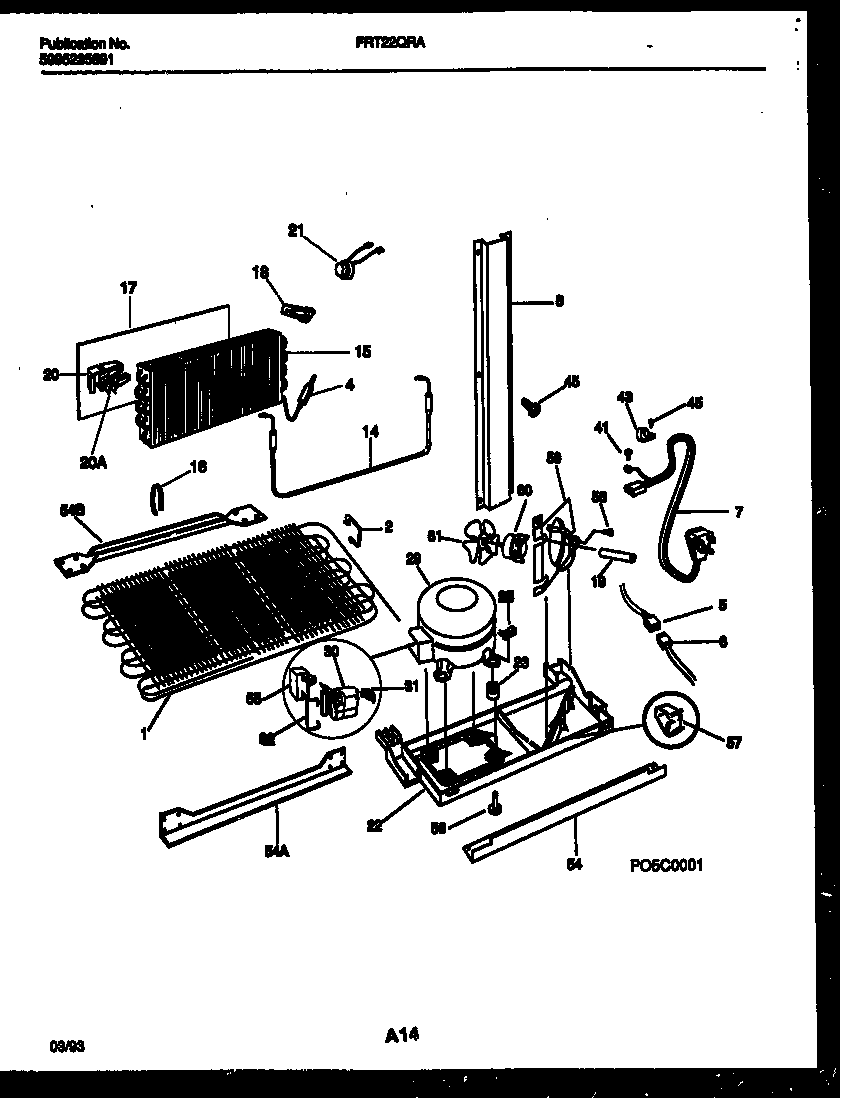

FRT22QRAY1 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5303289025
1	SPACER TUBE
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 215458300
6	WCI 215458700
7	WCI 215459200
8	WCI 5303289033
14	5317842502 Frigidaire Defrost Heater
15	WCI 215379601
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	TUBE-RUBBER
20	WCI 5303292406
20A	WCI 5303292405
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303917192
30	WCI 216008900
31	WCI 5303272819
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43	5308000133 Frigidaire Refrigerator Clamp
45	5304455852 Frigidaire Refrigerator Screw
45	5304455651 Frigidaire Refrigerator Screw
54A	WCI 5303289311
54B	WCI 5303289292
54A	5304500008 Frigidaire Oven Screw
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	SEAL-FOAM,COND FAN SHROUD
59	WCI 5303289031
60	WCI 215459000
61	GROMMET, SILENCER (NOT ILLUSTRATED)
61	WCI 215004700
61	WCI 5303289032
72993	HOT TUBE REPAIR KIT, SERVICE
