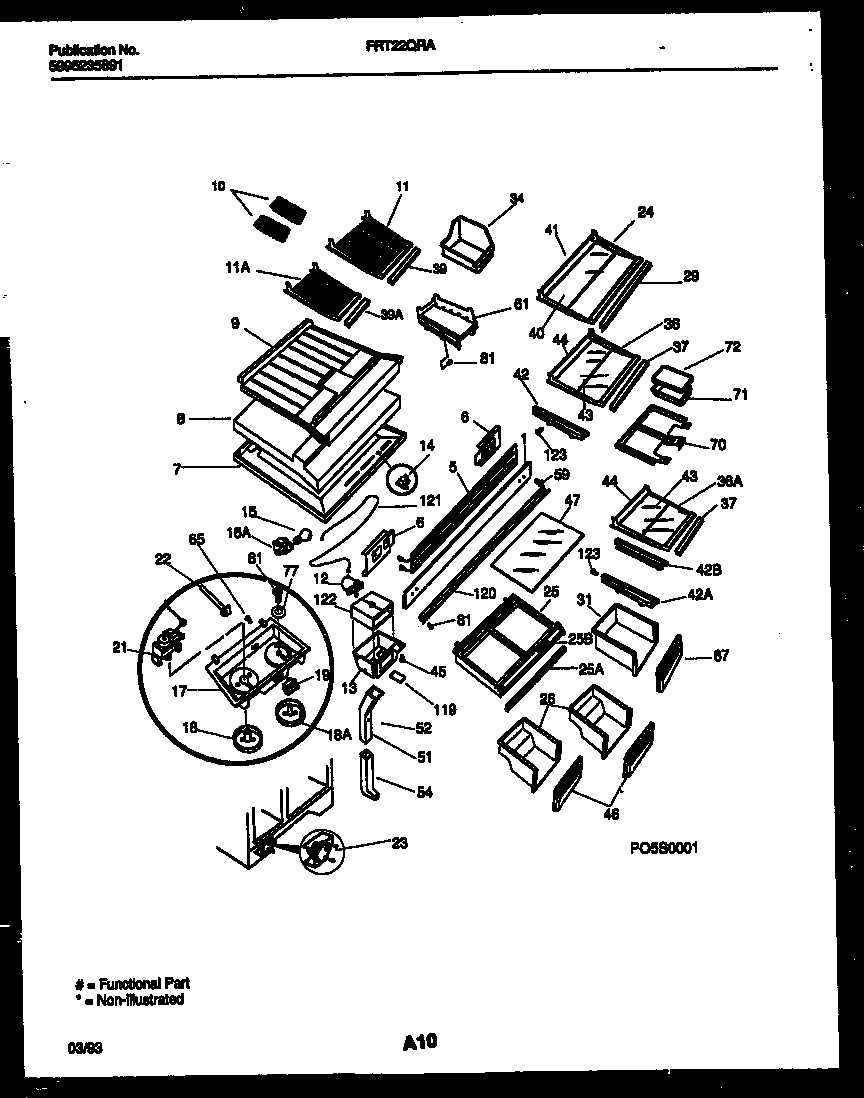

FRT22QRAY2 06 – SHELVES AND SUPPORTS

FRT22QRAY2 06 – SHELVES AND SUPPORTS

Written by

in

FRT22QRAY2 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002201
5WCI 215096800
6WCI 215096700
7WCI 215055801
7WCI 5303001380
83205266 Frigidaire Refrigerator Edge Protector
8WCI 215062700
9WCI 215058300
10WCI 01121808
11AWCI 5303292384
11WCI 5303292383
12WCI 215132300
12WASHER-AIR DEFLECTR
12SPACER-AIR DEFLECTR
13NUT, ANCHOR (NI)
13WCI 215132600
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303292409
17WCI 215280700
18WCI 5303292410
18AWCI 5303292411
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21WCI 5303001260
22HOUSING, CONTRL CAP TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
23COVER-DEFROST TIMER, TOP
23SHIELD-DEFROST TIMR,BTM
24WCI 215069017
25AWCI 5303292391
25B5303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216601
26WCI 5303292386
29WCI 5303292381
29WCI 5303209274
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215069016
36AWCI 215069018
37TRIM-HALF SHELF, FRONT, (2)
37RETAINER-GLASS, (3) (NON-ILLUSTRATED)
39AWCI 5303292385
39WCI 215217506
40WCI 5303292382
41WCI 5303292380
42WCI 215002301
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
42AHANGER-PAN/TRAY, RH
43GLASS-SHELF,HALF SHELF,(2)
44TRIM-HALF SHELF, SNAP-ON, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
46WCI 5303292657
47INSERT-PAN COVER, GLASS
51WCI 215132801
51WCI 215133300
51WCI 215133200
52WCI 215133000
52WCI 215132901
54WCI 215133100
59WCI 215097000
61WCI 215781501
65WCI 5303274946
67WCI 5303292662
70WCI 5303275653
71DISH-CORNING GLASS
72WCI 5303275754
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 215097101
121WCI 215364001
121NUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123WCI 08014528
72988WCI 215339900
72990LOCK-SHELF TRIM, REAR
