FRT22QRGD2 05 – SYSTEM

FRT22QRGD2 05 – SYSTEM

Written by

in

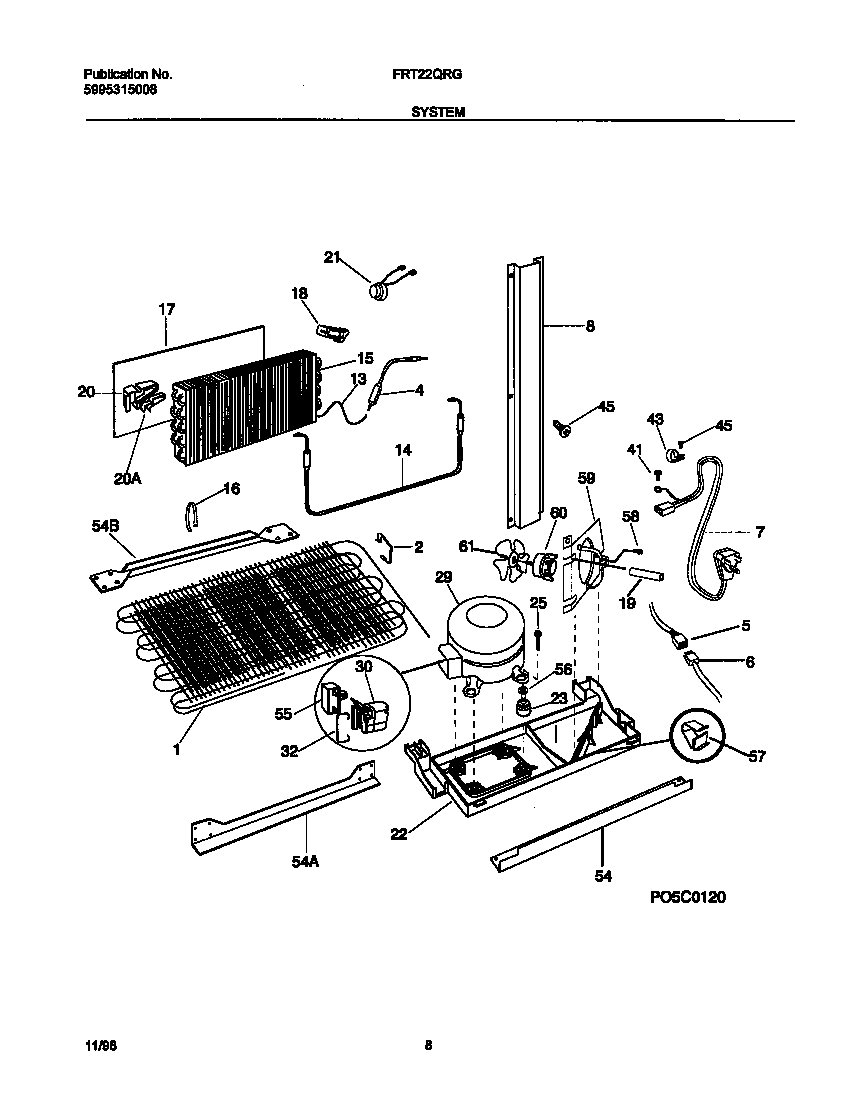

FRT22QRGD2 05 – SYSTEM

Products

PositionProduct
*65001WCI 215004700
*65003HOT TUBE REPAIR KIT, SERVICE
*649965308000133 Frigidaire Refrigerator Clamp
*649975304455651 Frigidaire Refrigerator Screw
*649985304455852 Frigidaire Refrigerator Screw
*64994SCREW,HEX HD SER WSHR ,8-18 X 0.375
*65002WCI 215004800
*64993SPACER TUBE
*65000SEAL-FOAM,COND FAN SHROUD
1WCI 218787700
2WCI 5303289029
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218663600
6WCI 215501601
7WCI 215459201
8WCI 218803400
13WCI 218168602
145317842502 Frigidaire Defrost Heater
15WCI 5303321220
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 5303292407
19WCI 218631200
20WCI 5303292405
20WCI 5303292406
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218769200
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
