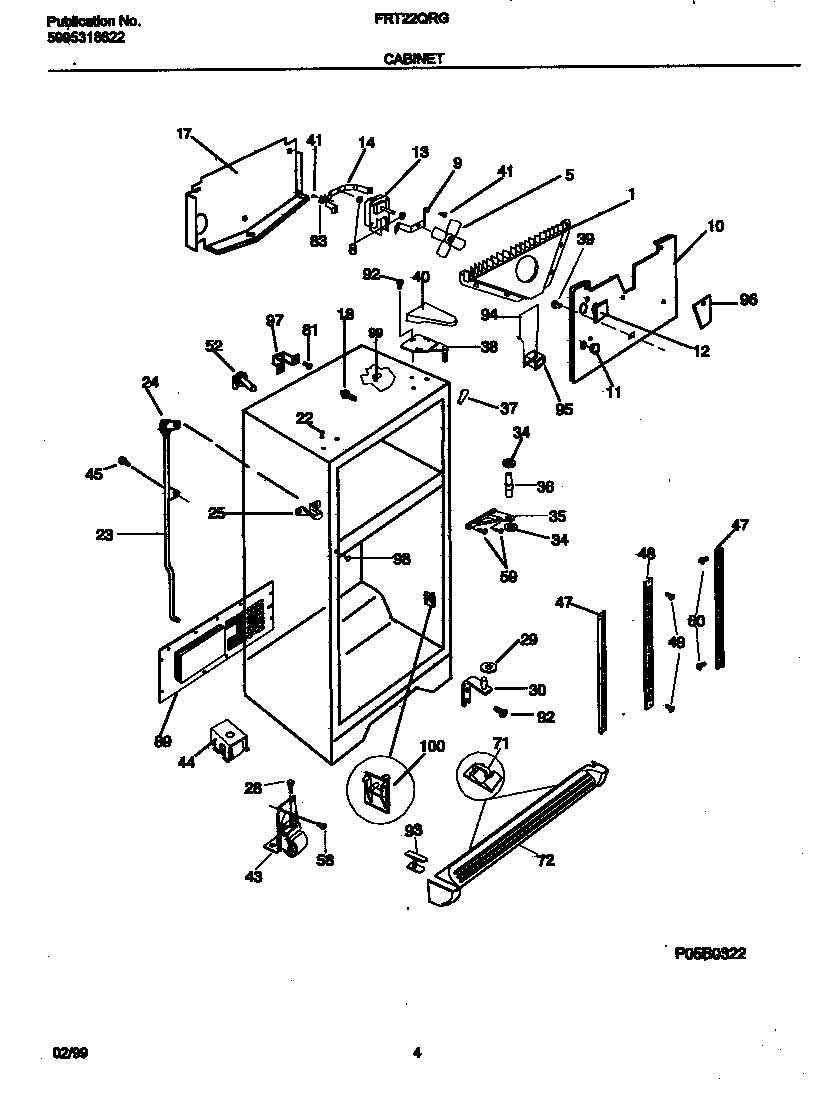

FRT22QRGW3 03 – CABINET

FRT22QRGW3 03 – CABINET

Written by

in

FRT22QRGW3 03 – CABINET

Products

PositionProduct
*631785304455852 Frigidaire Refrigerator Screw
*63170215474201 Frigidaire Refrigerator Washer
*63171WCI 215314301
*63179PLUG-WTR INLET TUBE
*63180SEAL-AIR DUCT COVER
*63177SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*63181GROMMET-SHELF MTG,.69“ LONG
*63184PLUG, BUTTON, CABINET LINER (NI)
*63176WCI 5304403492
*631825303321319 Frigidaire Refrigerator White Touch Up Paint
*63175WCI 218730700
*63173WCI 218150800
*63174WCI 218730800
*63172WCI 215314300
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774901 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218780001
36WCI 215095900
37WCI 5303321081
38BRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
39NUT-ANCHOR
40WCI 5303318773
415308000039 Frigidaire Refrigerator Screw
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49218493101 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
71218515401 Frigidaire Refrigerator Clip
72WCI 218359604
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362601
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98215099701 Frigidaire Refrigerator Button Plug
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
