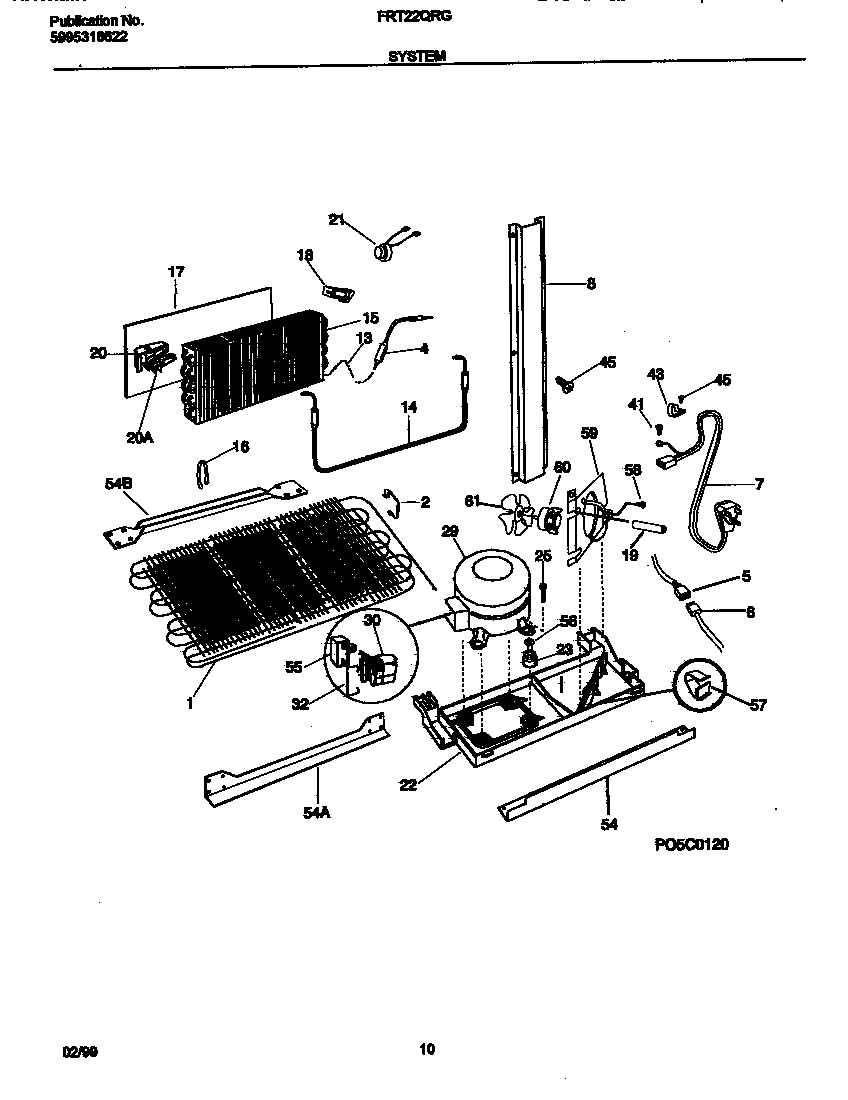

FRT22QRGW3 05 – SYSTEM

FRT22QRGW3 05 – SYSTEM

Written by

in

FRT22QRGW3 05 – SYSTEM

Products

PositionProduct
*63208WCI 215004700
*632025308000133 Frigidaire Refrigerator Clamp
*63199SPACER TUBE
*632045304455651 Frigidaire Refrigerator Screw
*63200SCREW,HEX HD SER WSHR ,8-18 X 0.375
*632035304455852 Frigidaire Refrigerator Screw
*63206WCI 218897001
*63209WCI 215004800
*63207SEAL-FOAM,COND FAN SHROUD
*632015303001199 Frigidaire Refrigerator Wiring Harness Clamp
*63210HOT TUBE REPAIR KIT, SERVICE
1WCI 218787700
2WCI 5303289029
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218663600
6WCI 215501601
7WCI 215459201
8WCI 218803400
13WCI 218168602
145317842502 Frigidaire Defrost Heater
15WCI 5303321220
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 5303292407
19WCI 218631200
20WCI 5303292406
20WCI 5303292405
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
45WCI 218769200
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
55297286803 Frigidaire Refrigerator Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
