FRT22RGCB2 02 – DOOR

FRT22RGCB2 02 – DOOR

Written by

in

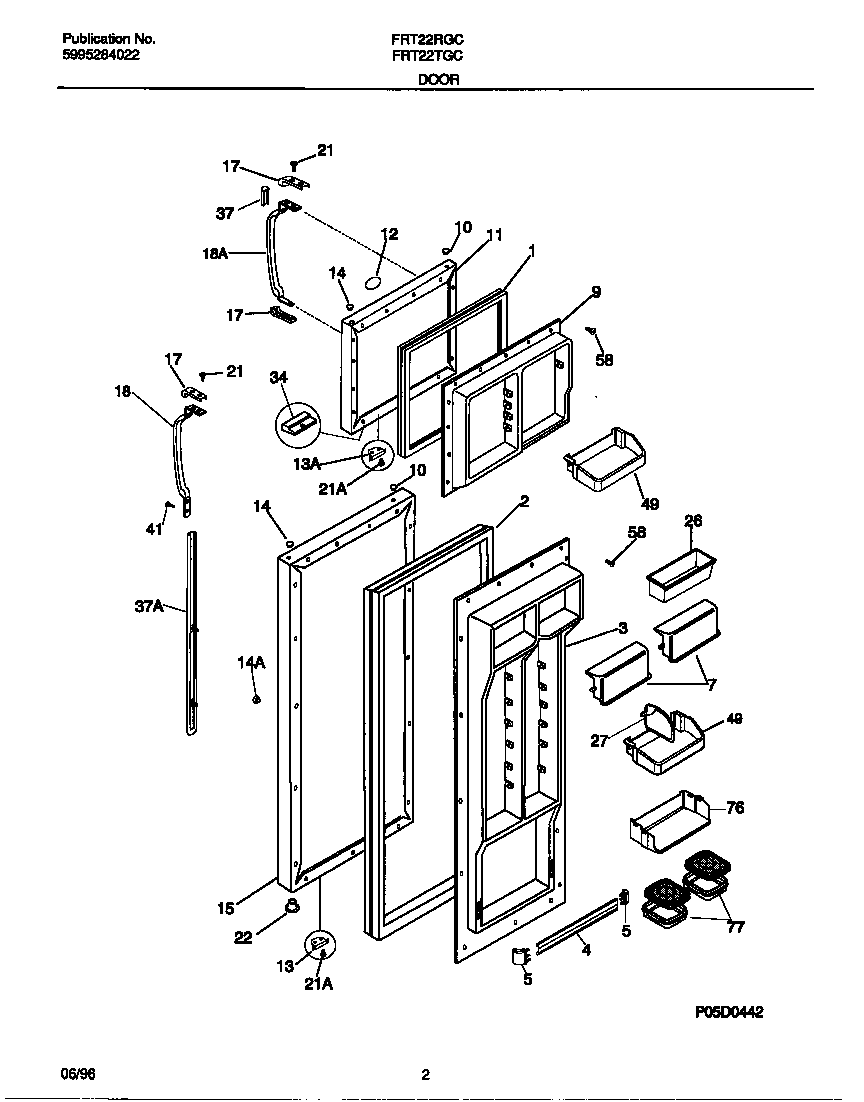

FRT22RGCB2 02 – DOOR

Products

PositionProduct
*02041INSULATION
*02040WCI 215940700
1WCI 215608925
2WCI 5303299063
3WCI 215784001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
9WCI 5303292371
10WCI 5303299154
11WCI 5303917562
12WCI 215008606
12WCI 218364006
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
13WCI 215030018
14240494003 Frigidaire Refrigerator Plug-Button
15WCI 215307818
17WCI 218696405
18WCI 215983220
18WCI 215981320
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423601
37WCI 218549832
37WCI 215867081
41218843801 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
76WCI 218423900
77WCI 218423502
