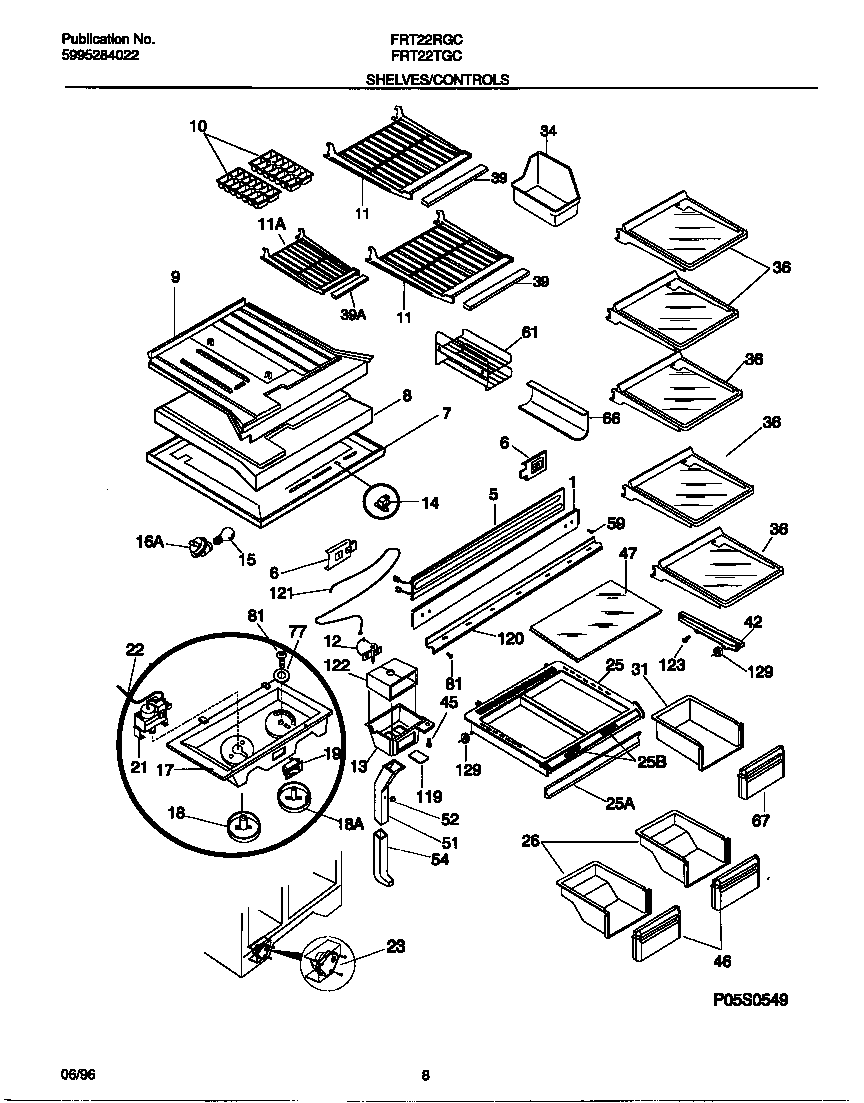

FRT22RGCB2 04 – SHELVES/CONTROLS

FRT22RGCB2 04 – SHELVES/CONTROLS

Written by

in

FRT22RGCB2 04 – SHELVES/CONTROLS

Products

PositionProduct
*02046WCI 215339100
*02050WCI 215339900
*02047WCI 215359900
*02049WCI 218660800
*02048WCI 215848000
1WCI 5303299280
5WCI 215634100
6WCI 218279800
7AWCI 218646701
7BWCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292384
11WCI 5303292383
12CWCI 218634800
12BWASHER-AIR DEFLECTR
12AWCI 218634902
13AWCI 218629900
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932905
18WCI 5303310731
18WCI 5303310732
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303319419
21BWCI 5303001260
22WCI 218660701
23DSHIELD-DEFROST TIMR,BTM
23CCOVER-DEFROST TIMER, TOP
23A5303917634 Frigidaire Refrigerator Defrost Timer 8Hr 21Min
23B5304455649 Frigidaire Refrigerator Screw
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 5303308349
25WCI 215216634
26WCI 5303292386
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 5303284480
39WCI 215217539
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390564
51AWCI 215132809
51BWCI 215133200
51CWCI 215133300
52BWCI 215133000
52AWCI 215132901
54WCI 215133100
59WCI 215069518
59WCI 218188500
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61BGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
61AWCI 218620901
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121BNUT,PUSH-ON ,DAMPER CABLE
121AWCI 215364001
122BWCI 218561204
122AWCI 218561202
123215005101 Frigidaire Refrigerator Screw
129BWCI 5303299153
129AWCI 5303299152
