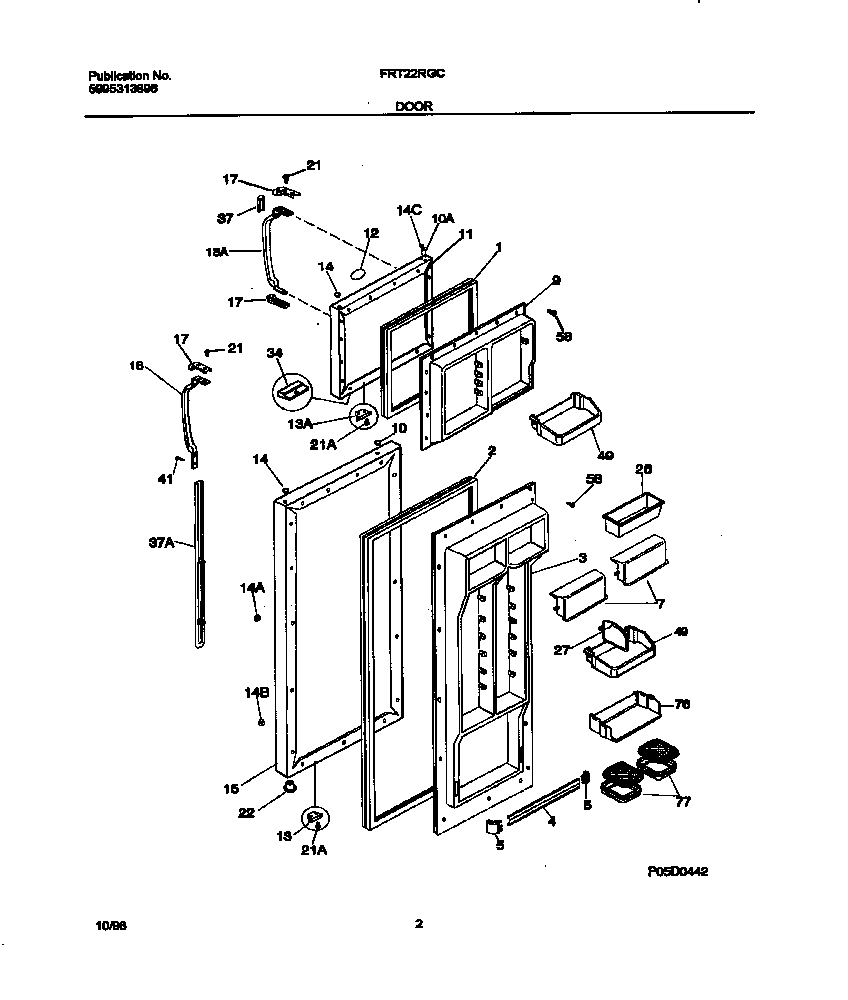

FRT22RGCB7 02 – DOOR

FRT22RGCB7 02 – DOOR

Written by

in

FRT22RGCB7 02 – DOOR

Products

PositionProduct
*48724INSULATION
*48720WCI 215008606
*48723TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608925
2WCI 218730616
3WCI 215784001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
9WCI 5303292371
10WCI 218696503
10WCI 5303299154
11WCI 5303917993
12WCI 218364006
13WCI 215030018
13WCI 5303289522
14CWCI 218074003
14BWCI 218074002
14WCI 218696603
14240494003 Frigidaire Refrigerator Plug-Button
14AWCI 218074001
15WCI 5303918021
17WCI 218696405
18WCI 215981320
18WCI 215983220
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 218783202
37WCI 218549832
37TRIM-HANDLE,METALLIC GRAY ,LOWER ,W/GOLD BAND,AND LOCKS
37CWCI 218676003
37AWCI 215782300
37BWCI 215940700
41218843801 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423900
77WCI 218423502
