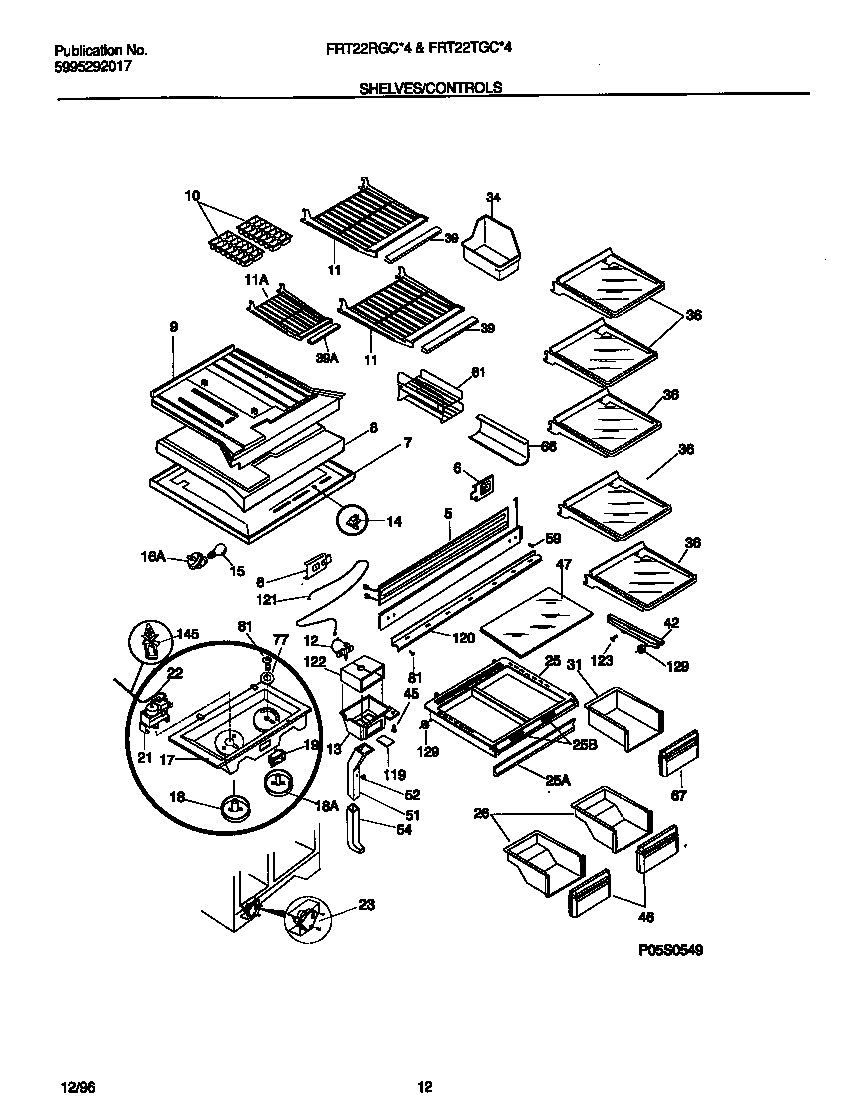

FRT22RGCD4 07 – SHELVES/CONTROLS

FRT22RGCD4 07 – SHELVES/CONTROLS

Written by

in

FRT22RGCD4 07 – SHELVES/CONTROLS

Products

PositionProduct
*68170WCI 215339900
*68169WCI 215848000
*68167WCI 215359900
*68168WCI 215339100
1WCI 5303299279
5WCI 218752300
6WCI 218279800
7AWCI 218646701
7BWCI 5303001380
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292383
11WCI 5303292384
12AWCI 218634902
12BSPACER-AIR DEFLECTR
12CWASHER-AIR DEFLECTR
13AWCI 218629900
13BNUT, ANCHOR (NI)
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT-ANCHOR
17AWCI 215932905
18WCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303319419
21BWCI 5303001260
22WCI 218660701
23BCOVER-DEFROST TIMER, TOP
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23C5304455649 Frigidaire Refrigerator Screw
23DSHIELD-DEFROST TIMR,BTM
25WCI 215216634
25WCI 5303308349
255303307715 Frigidaire Refrigerator Humidity Control
26WCI 5303292386
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 5303284480
39WCI 215217539
42AWCI 215002301
42BHANGER-PAN/TRAY, RH
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390564
51AWCI 215132809
51BWCI 215133200
51CWCI 215133300
52BWCI 215133000
52AWCI 215132901
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
59WCI 218188500
59WCI 215069501
61AWCI 218620901
61BGASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122BWCI 218561204
122AWCI 218561202
123215005101 Frigidaire Refrigerator Screw
129AWCI 5303299152
129BWCI 5303299153
145WCI 218660800
