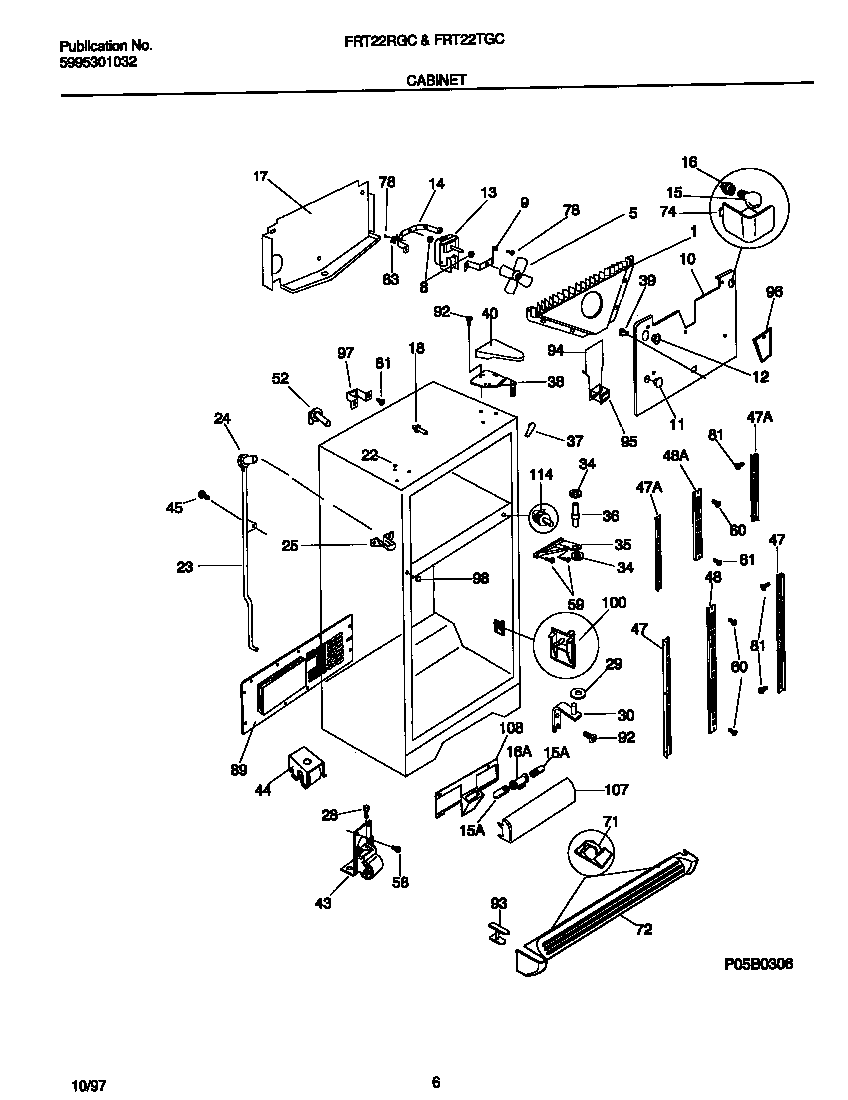

FRT22RGCD6 03 – CABINET

FRT22RGCD6 03 – CABINET

Written by

in

FRT22RGCD6 03 – CABINET

Products

PositionProduct
*59841PLUG, BUTTON, CABINET LINER (NI)
*59843TOUCH, UP PAINT, ALMOND (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10COVER-EVAP COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13B215474201 Frigidaire Refrigerator Washer
13A5300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 218708700
15WCI 215812200
16WCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25BWCI 5303001361
25AWCI 5303292412
28WCI 5303289062
29AWCI 215003200
29BWCI 215314300
30BWCI 218730700
30CWCI 218730800
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30DWCI 218730900
34WCI 218737000
35WCI 215002611
36WCI 215095900
37WCI 5303321082
38WCI 218215223
39WCI 08006983
40WCI 218374405
43AWCI 218615300
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
47WCI 218233300
47WCI 215209100
48WCI 215209200
48WCI 218487200
52PLUG-WTR INLET TUBE
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
74WCI 215423500
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94AWCI 5303319993
94BSEAL-AIR DUCT COVER
95WCI 218663100
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218710800
1145303289051 Frigidaire Refrigerator Light Switch
