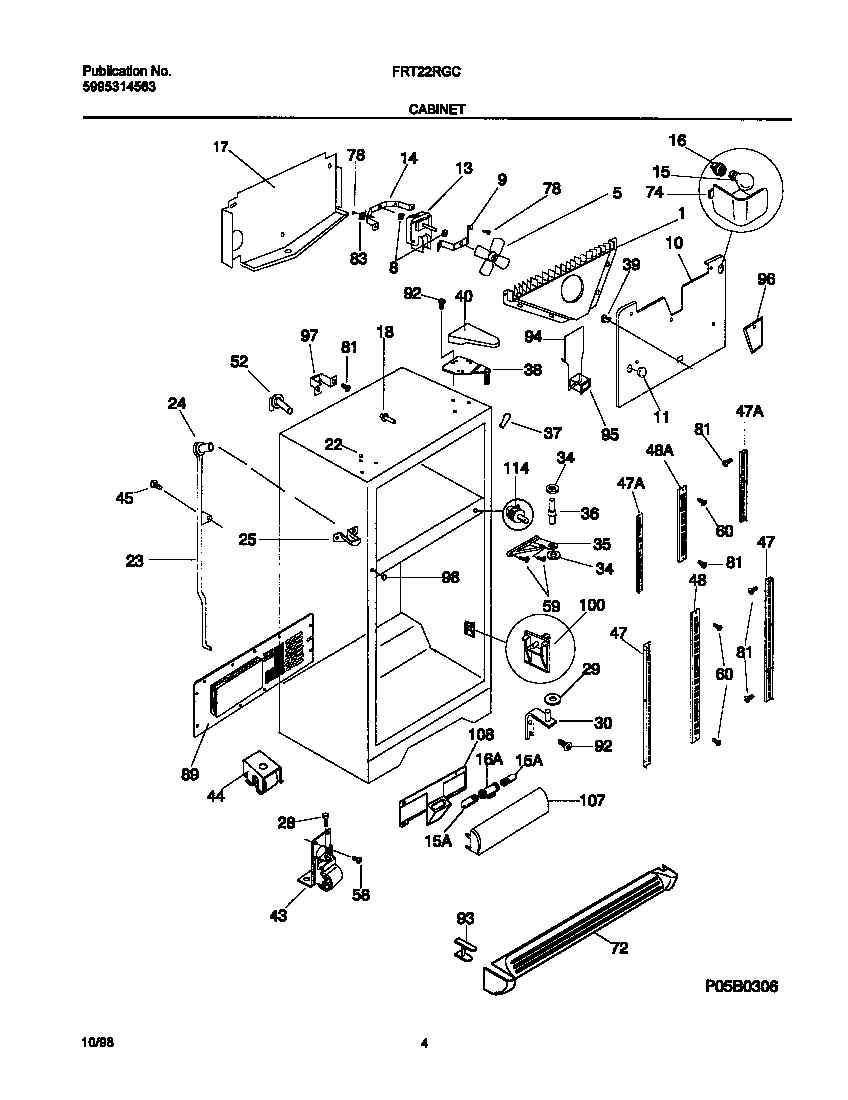

FRT22RGCD9 03 – CABINET

FRT22RGCD9 03 – CABINET

Written by

in

FRT22RGCD9 03 – CABINET

Products

PositionProduct
*83092SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*83098TOUCH, UP PAINT, ALMOND (NI)
*83100PLUG, BUTTON, CABINET LINER (NI)
*83091WCI 5304403492
*83087WCI 5303001361
*83089WCI 218730800
*83085SCREW,HEX HD SER WSHR ,8-18 X 0.375
*83088WCI 218730700
*83086215474201 Frigidaire Refrigerator Washer
*83096SEAL-AIR DUCT COVER
*83094PLUG-WTR INLET TUBE
*83090WCI 218730900
*83095218515401 Frigidaire Refrigerator Clip
*830935304455852 Frigidaire Refrigerator Screw
*831015308000039 Frigidaire Refrigerator Screw
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10COVER-EVAP COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 218708700
15WCI 215812200
16SOCKET-LIGHT/LAMP
16WCI 5303299157
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29BWCI 215314300
29CWCI 215314301
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 215002611
36WCI 215095900
37WCI 5303321082
38WCI 218215223
39WCI 08006983
40WCI 218374405
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 215209100
47WCI 218233300
48WCI 215209200
48WCI 218487200
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
72WCI 218359608
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218834202
1145303289051 Frigidaire Refrigerator Light Switch
