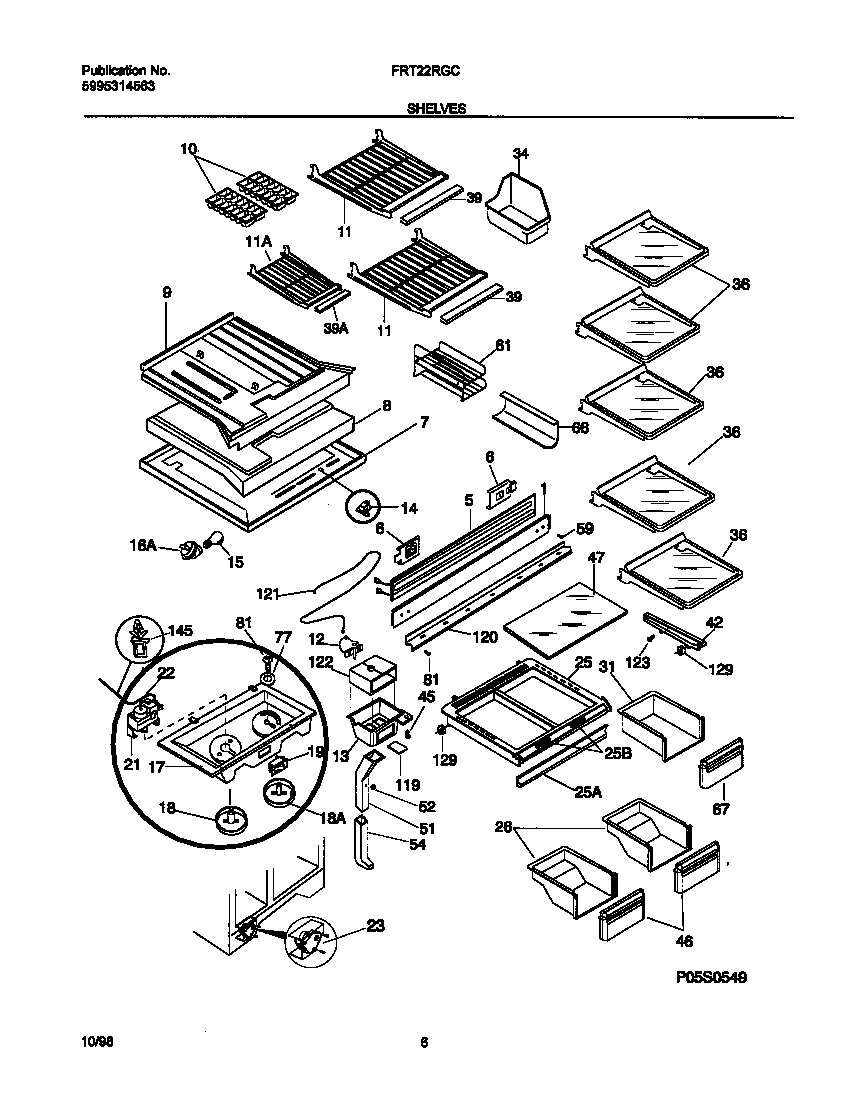

FRT22RGCD9 04 – SHELVES

FRT22RGCD9 04 – SHELVES

Written by

in

FRT22RGCD9 04 – SHELVES

Products

PositionProduct
*83103WCI 218671800
*83121WCI 215339900
*83104WCI 215363801
*83105WCI 215363901
*83120WCI 215339100
*83122WCI 215359900
*83106NUT-ANCHOR
*83113WCI 215133200
*83123WCI 215848000
*83119GASKET/SPACER, ICE TRAY SHELF (NOT ILLUSTRATED)
*83114WCI 215133300
*83115WCI 215133000
*83116WCI 215069501
*83118WCI 218188500
*83109COVER-DEFROST TIMER, TOP
*83112HANGER-PAN/TRAY, RH
*83108WCI 5303001260
*83111SHIELD-DEFROST TIMR,BTM
*83102WCI 5303001380
*83107NUT, ANCHOR (NI)
*831105304455649 Frigidaire Refrigerator Screw
1WCI 5303299279
5WCI 218752300
6WCI 218845601
7WCI 218646702
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303292383
11WCI 5303292384
12WCI 218634902
13WCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215932905
18WCI 5303310732
18WCI 5303310731
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5304403880
22WCI 218660701
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI 5303308349
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216634
26WCI 5303292386
31WCI 5303304632
345303212918 Frigidaire Refrigerator Cont
36SHELF-“SPILL-SAFE“, FIXED, TEAL GRAPHICS
39WCI 5303284480
39WCI 215217539
42WCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 218278401
47WCI 218390564
51WCI 215132809
52WCI 215132901
54WCI 215133100
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 218620901
66WCI 5303307872
67WCI 218278701
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122AWCI 218561202
122BWCI 218561204
123215005101 Frigidaire Refrigerator Screw
129BWCI 5303299153
129AWCI 5303299152
145WCI 218660800
