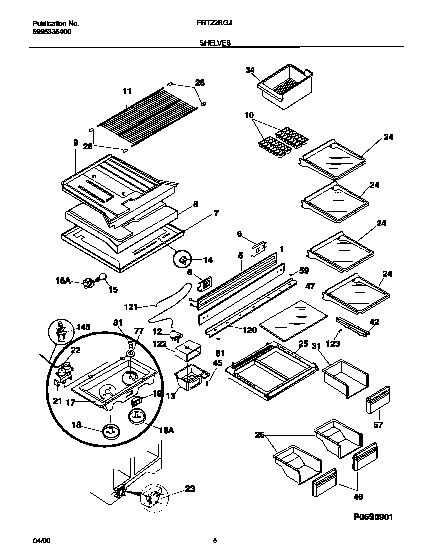

FRT22RGJW0 04 – SHELVES

FRT22RGJW0 04 – SHELVES

Written by

in

FRT22RGJW0 04 – SHELVES

Products

PositionProduct
*47508WCI 215363801
*47516HANGER-PAN/TRAY, RH
*47510NUT-ANCHOR
*475075303299664 Frigidaire Refrigerator Spacer-Shelf
*47513COVER-DEFROST TIMER, TOP
*47515SHIELD-DEFROST TIMR,BTM
*47518WCI 215359900
*47517WCI 215339100
*47509WCI 215363901
*47506WCI 218965501
*47512WCI 5303001260
*47511NUT, ANCHOR (NI)
*475145304455649 Frigidaire Refrigerator Screw
*47519WCI 215848000
1WCI 218652300
5WCI 218752300
6WCI 218845601
7WCI 218907501
8WCI 218909707
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5304409141
12WCI 218634902
13WCI 218629900
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215932906
18WCI 5304414917
18WCI 5304414918
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5304402184
22WCI 218660701
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215406138
25WCI 215216651
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
42WCI 215002301
455304455651 Frigidaire Refrigerator Screw
46WCI 5304405084
47WCI 218498180
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 5304405086
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121AWCI 215364001
121BNUT,PUSH-ON ,DAMPER CABLE
122AWCI 218561201
122BWCI 218561203
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
