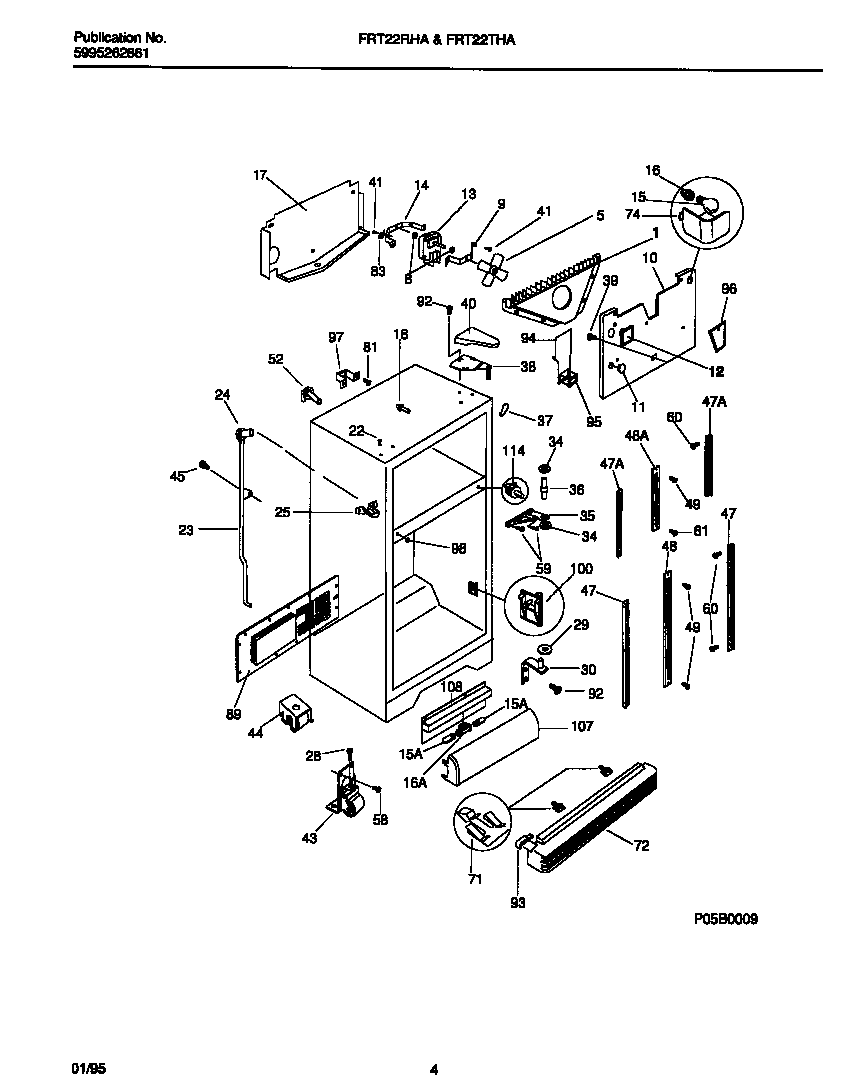

FRT22RHAB2 03 – CABINET W/FAN ASSY.

FRT22RHAB2 03 – CABINET W/FAN ASSY.

Written by

in

FRT22RHAB2 03 – CABINET W/FAN ASSY.

Products

PositionProduct
*227655303321321 Frigidaire Refrigerator Black Touch-Up Paint
*22764PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303299151
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13A5300158289 Frigidaire Evaporator Fan Motor
13B215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15WCI 218188900
16WCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25BWCI 5303001361
25AWCI 5303292412
28WCI 5303289062
29WCI 215003200
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
30CTAPPING PLATE, RH (NOT ILLUSTRATED)
30AWCI 218150800
34WCI 215095400
35WCI 215002618
36WCI 215095900
37WCI 5303272428
38WCI 218158000
39WCI 08006983
40WCI 5303299155
415308000039 Frigidaire Refrigerator Screw
43AWCI 5303289059
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 215209100
47WCI 218233300
48WCI 215209200
48WCI 215359600
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52PLUG-WTR INLET TUBE
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71AWCI 215003300
71BSCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 215362918
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327118
94BSEAL-AIR DUCT COVER
94AWCI 5303292669
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 215171800
114WCI 5303299156
