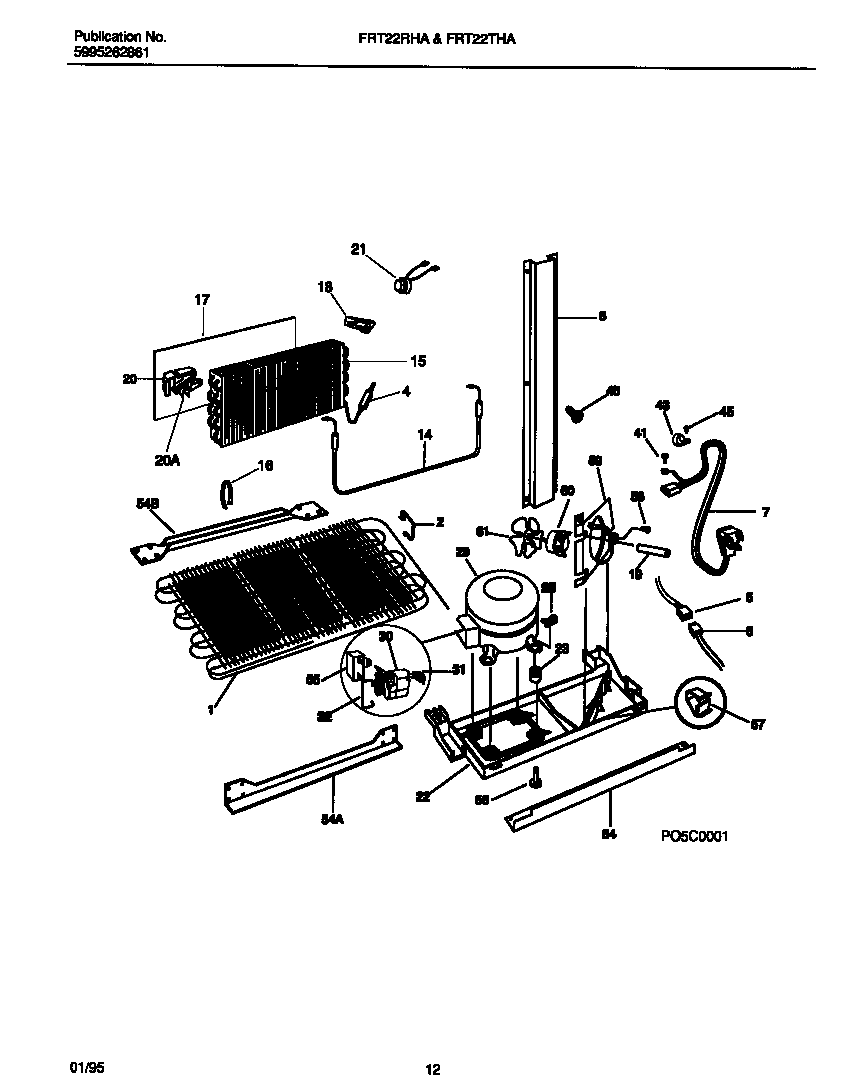

FRT22RHAB2 05 – COOLING SYSTEM

Products

Position	Product
*22770	HOT TUBE REPAIR KIT, SERVICE
1B	SPACER TUBE
1A	WCI 5303289025
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5A	WCI 215634001
5B	WCI 215931400
6	WCI 215633901
7	WCI 215459201
8	WCI 5303289033
14	5317842502 Frigidaire Defrost Heater
15	WCI 215379601
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 5303292407
19	TUBE-RUBBER
20	WCI 5303292405
20	WCI 5303292406
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	COMPRESSOR W/O ELECTRICALS
30	WCI 216008900
31	WCI 5303276514
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43A	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43C	5308000133 Frigidaire Refrigerator Clamp
45A	5304455651 Frigidaire Refrigerator Screw
45C	5304455852 Frigidaire Refrigerator Screw
54	WCI 5303289292
54	WCI 5303289311
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59A	WCI 5303289031
59B	SEAL-FOAM,COND FAN SHROUD
60	WCI 215501800
61B	WCI 215004700
61C	GROMMET, SILENCER (NOT ILLUSTRATED)
61A	WCI 5303289032
