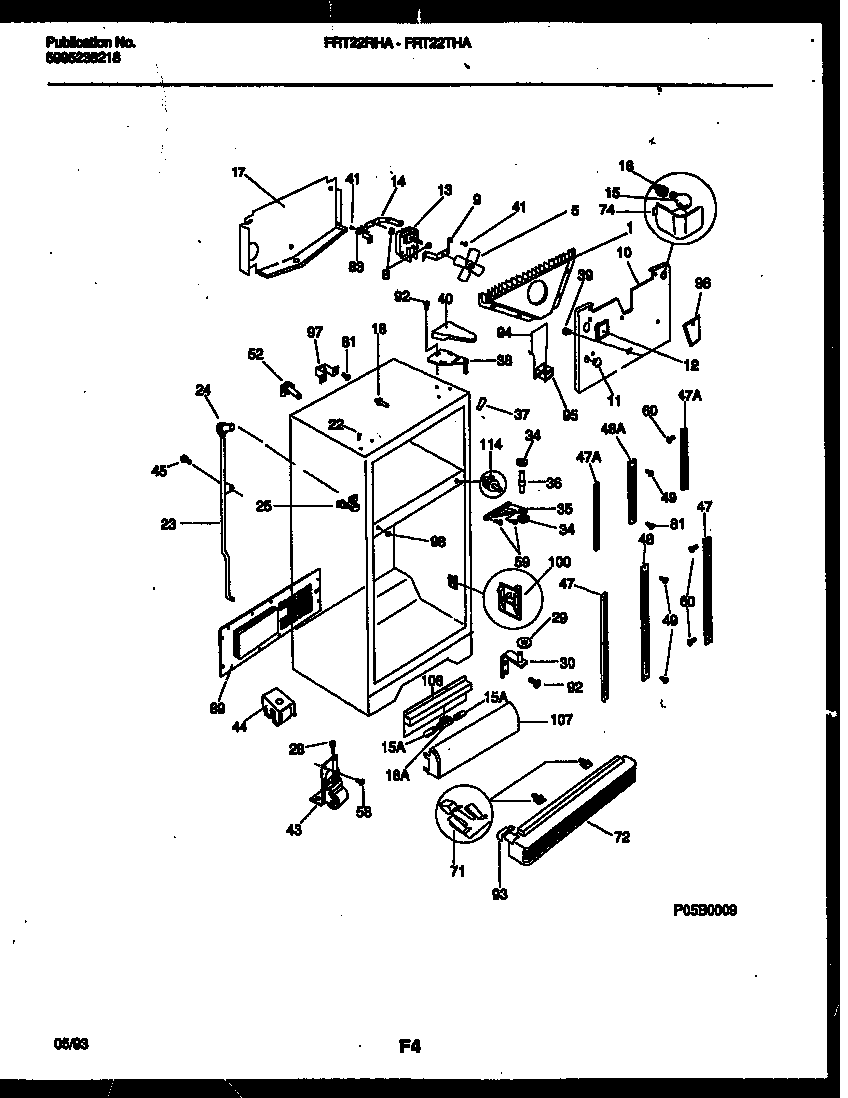

FRT22RHAK0 04 – CABINET PARTS

FRT22RHAK0 04 – CABINET PARTS

Written by

in

FRT22RHAK0 04 – CABINET PARTS

Products

PositionProduct
1WCI 5303292399
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303299151
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
13215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15AWCI 215507900
16AWCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
25WCI 5303001361
28WCI 5303289062
29WCI 215003200
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 215095400
35WCI 215002618
36WCI 215095900
37WCI 5303272428
38WCI 5303292368
39WCI 08006983
40WCI 5303299155
415308000039 Frigidaire Refrigerator Screw
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
47AWCI 215209100
48WCI 215359600
48AWCI 215209200
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52WCI 5303289294
52PLUG-WTR INLET TUBE
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 215362918
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327118
94WCI 5303292669
95WCI 215338900
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 215379300
108WCI 215171800
114WCI 5303299156
