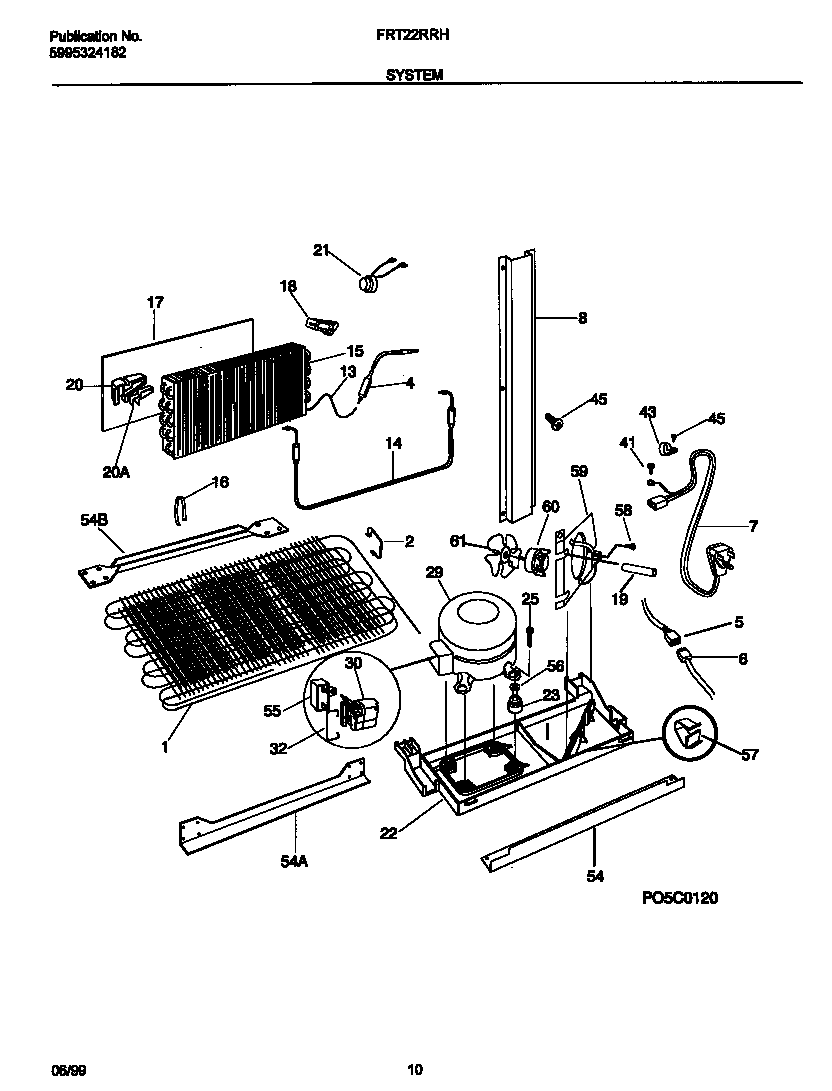

FRT22RRHB1 05 – SYSTEM

FRT22RRHB1 05 – SYSTEM

Written by

in

FRT22RRHB1 05 – SYSTEM

Products

PositionProduct
*23679WCI 215004700
*23670SPACER-COND TUBE,BLACK
*23681HOT TUBE REPAIR KIT, SERVICE
*23671SPACER TUBE
*236735308000133 Frigidaire Refrigerator Clamp
*236745304455852 Frigidaire Refrigerator Screw
*23677WCI 218897001
*23680WCI 215004800
*23678SEAL-FOAM,COND FAN SHROUD
*236725304500008 Frigidaire Oven Screw
1WCI 218787700
2WCI 5303289029
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218663600
6WCI 215501601
7WCI 215459201
8WCI 218803400
13WCI 218168602
145317842502 Frigidaire Defrost Heater
15WCI 5303321220
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 5303292407
19WCI 218631200
20WCI 5303292406
20WCI 5303292405
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45B5304455651 Frigidaire Refrigerator Screw
45AWCI 218769200
54WCI 5303289311
54WCI 5303289027
54WCI 5303289292
55WCI 218909902
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
