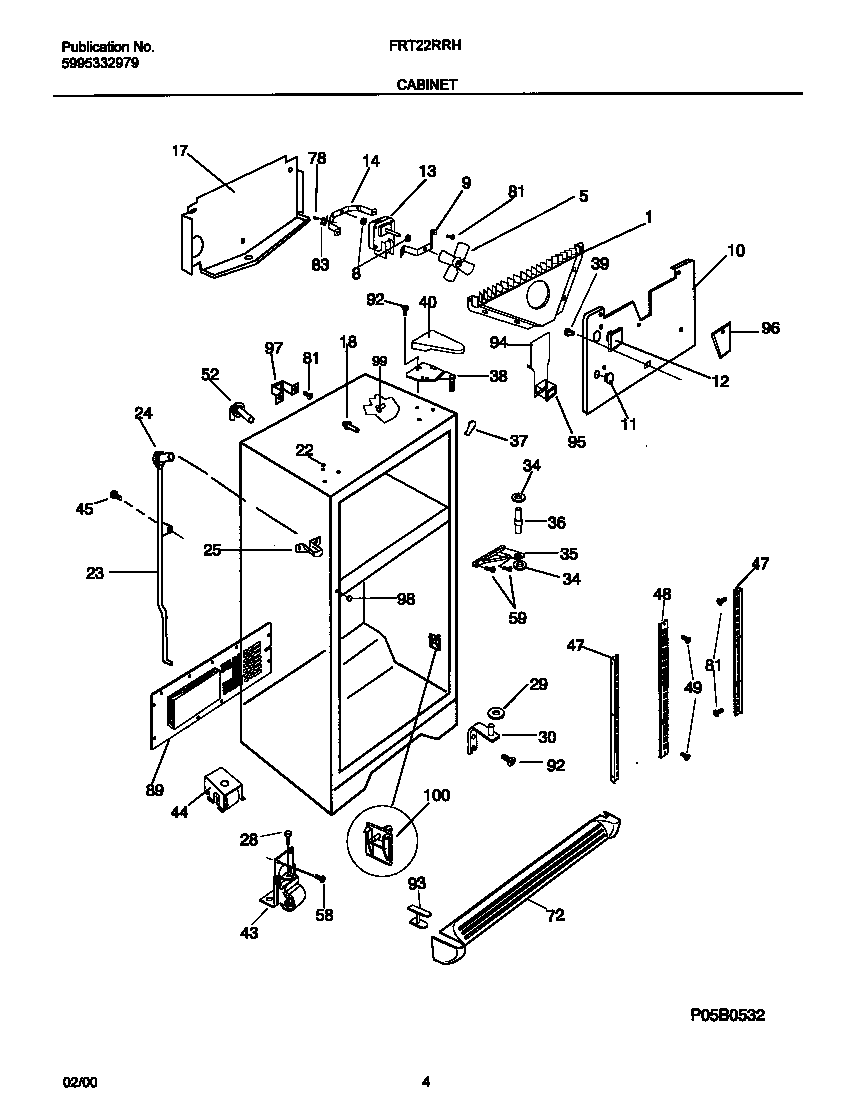

FRT22RRHB2 03 – CABINET

FRT22RRHB2 03 – CABINET

Written by

in

FRT22RRHB2 03 – CABINET

Products

PositionProduct
*280125303321321 Frigidaire Refrigerator Black Touch-Up Paint
*28008SEAL-AIR DUCT COVER
*28003215474201 Frigidaire Refrigerator Washer
*28005WCI 218979601
*28006WCI 218979701
*28007PLUG-WTR INLET TUBE
*28009GROMMET-SHELF MTG,.69“ LONG
*28004WCI 5303001361
*28013PLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
34WCI 218737000
35WCI 218220103
36WCI 215095900
37WCI 5303321083
38WCI 218215228
39WCI 215848000
40WCI 5303323268
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49218493101 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
58SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218359612
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON,BLACK
99GROMMET-SHELF MTG,1.25“ LONG
100SUPPORT-PAN COVER
