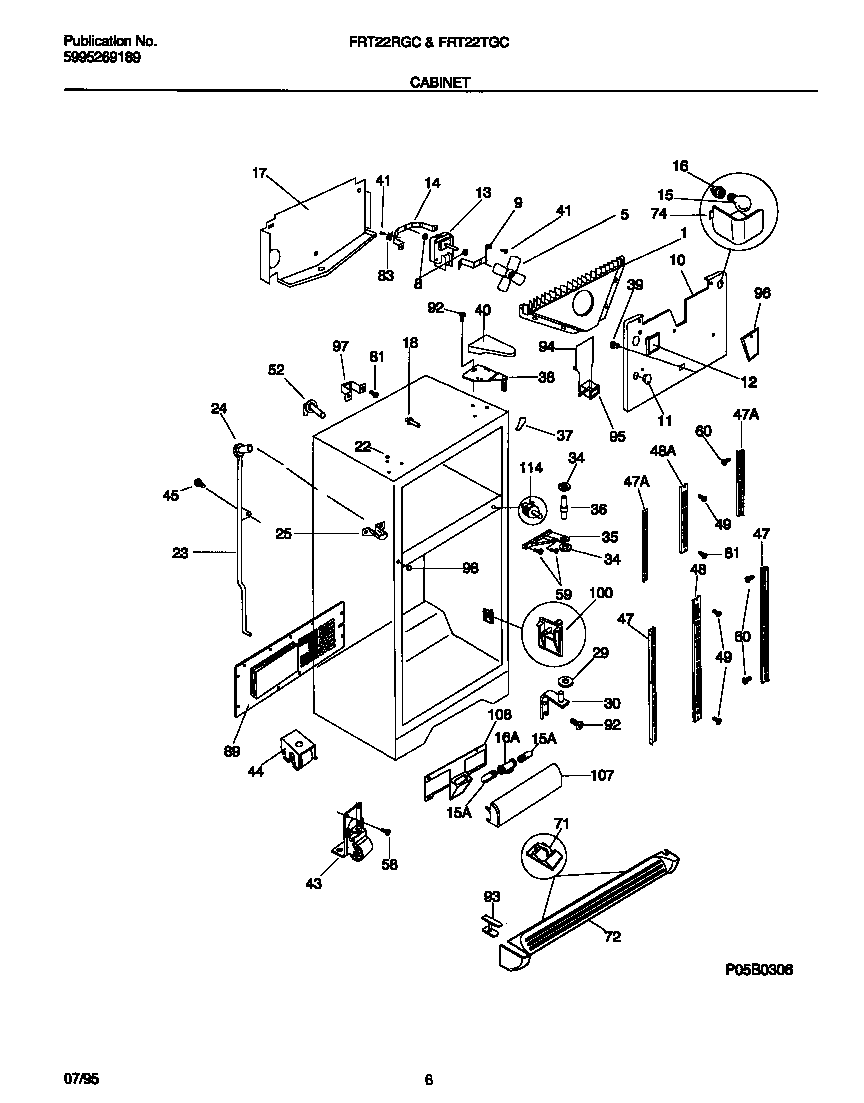

FRT22TGCD1 03 – CABINET

FRT22TGCD1 03 – CABINET

Written by

in

FRT22TGCD1 03 – CABINET

Products

PositionProduct
*94881PLUG, BUTTON, CABINET LINER (NI)
*94883TOUCH, UP PAINT, ALMOND (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303299151
115303208309 Frigidaire Refrigerator Plug Hole
13A215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
15WCI 215812200
15AWCI 218188900
16SOCKET-LIGHT/LAMP
16AWCI 5303299157
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22WCI 215774911
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
25AWCI 5303001361
29WCI 215003200
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30WCI 218150800
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 218158000
39WCI 08006983
40WCI 218374402
415308000039 Frigidaire Refrigerator Screw
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 218615300
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
47AWCI 215209100
48WCI 218487200
48AWCI 215209200
49218362501 Frigidaire Refrigerator Screw
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362602
94ASEAL-AIR DUCT COVER
94WCI 5303292669
95WCI 215931300
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
107WCI 218188800
108WCI 218476800
1145303289051 Frigidaire Refrigerator Light Switch
