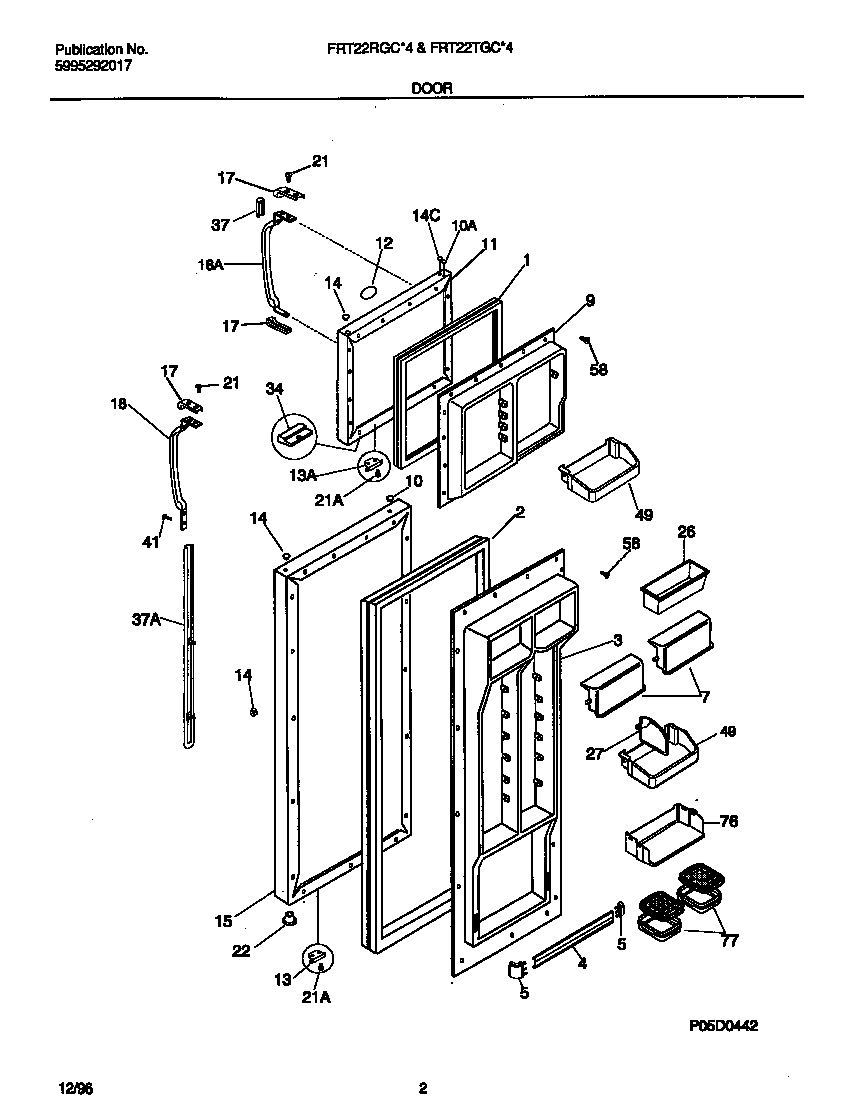

FRT22TGCD4 02 – DOOR

FRT22TGCD4 02 – DOOR

Written by

in

FRT22TGCD4 02 – DOOR

Products

PositionProduct
*68160WCI 215627402
*68162INSULATION
*68161WCI 215940700
1WCI 215608905
2WCI 5303292370
3WCI 215784001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 5303308347
9WCI 5303292371
10WCI 218696502
10WCI 5303292414
11WCI 5303917857
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12LABEL-NAMEPLATE,ALMOND
12WCI 218364005
13WCI 215030011
13WCI 5303289522
14WCI 218696602
14WCI 215352211
15WCI 218209511
17WCI 218696404
18WCI 215981319
18WCI 215983219
21SCREW-HANDLE MTG, FLAT HEAD, 0-16AB X 0.625
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
34WCI 215423601
37WCI 218549830
37WCI 215867080
415308000039 Frigidaire Refrigerator Screw
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423900
77WCI 218423502
