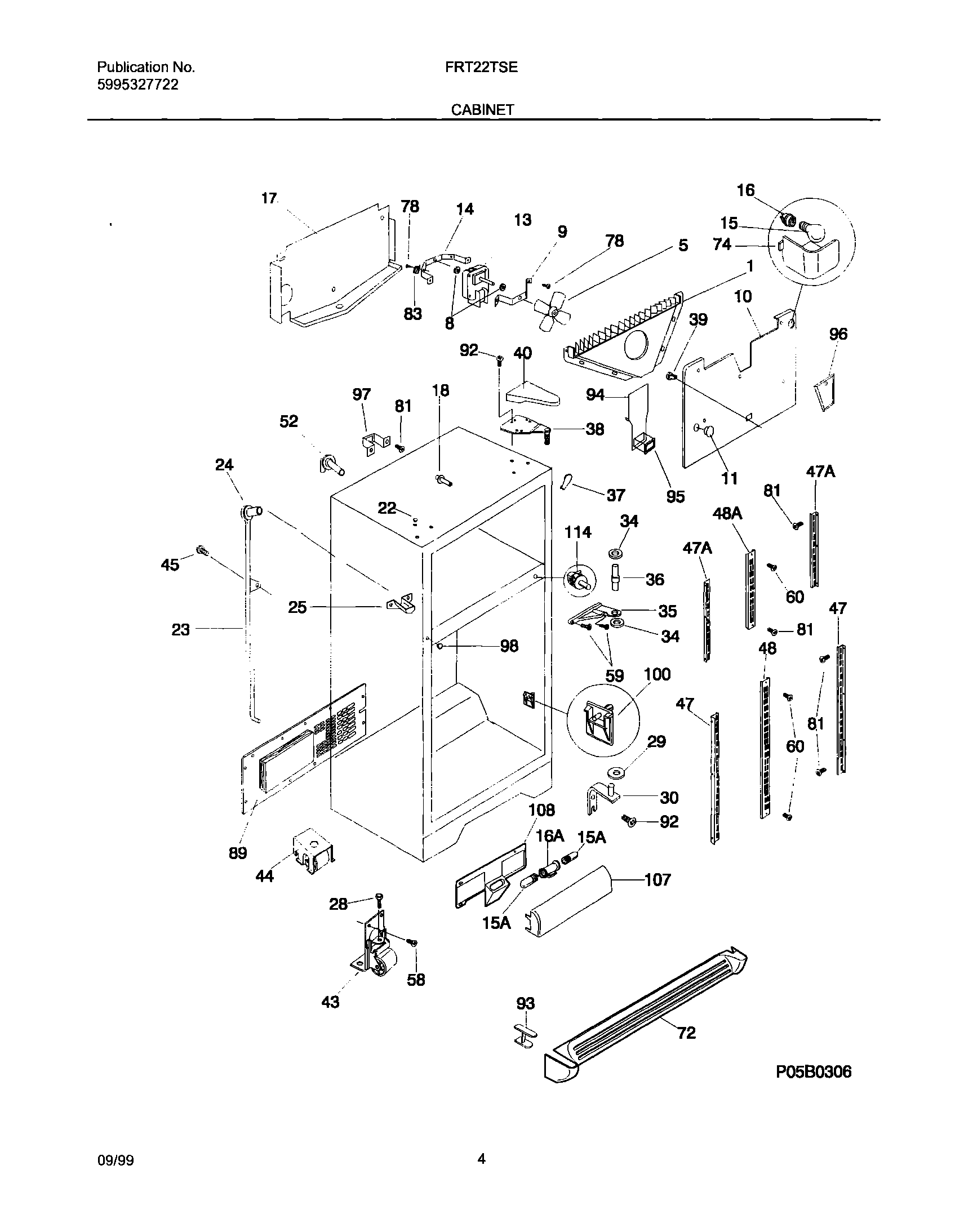

FRT22TSEK5 04 – CABINET

FRT22TSEK5 04 – CABINET

Written by

in

FRT22TSEK5 04 – CABINET

Products

PositionProduct
NIWCI 5303001361
NIPLUG, BUTTON, CABINET LINER (NI)
1WCI 215937600
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10COVER-EVAP COIL
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
13215474201 Frigidaire Refrigerator Washer
14240438003 Frigidaire Refrigerator Bracket & Bushing
15AWCI 218708700
15WCI 215812200
16AWCI 5303299157
16SOCKET-LIGHT/LAMP
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22215774918 Frigidaire Refrigerator Button Plug
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
28WCI 5303289062
29WCI 215314300
29WCI 215003200
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30WCI 218730800
30WCI 218730700
34WCI 218737000
35WCI 218780003
36WCI 215095900
37WCI 5303321083
38WCI 5304403492
38WCI 218215216
39WCI 08006983
40WCI 5303323268
43WCI 218615300
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
47AWCI 215209100
48AWCI 215209200
48WCI 218877701
52TUBE-WATER,ICE MOLD FILL ,ELBOW
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
72218515401 Frigidaire Refrigerator Clip
72WCI 218359612
74WCI 215423500
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 218362603
94SEAL-AIR DUCT COVER
94WCI 5303319993
95WCI 218663101
96WCI 215775901
97WCI 5303289299
98PLUG-BUTTON,BLACK
100SUPPORT-PAN COVER
107WCI 218835902
108WCI 218834202
114WCI 5303299156
