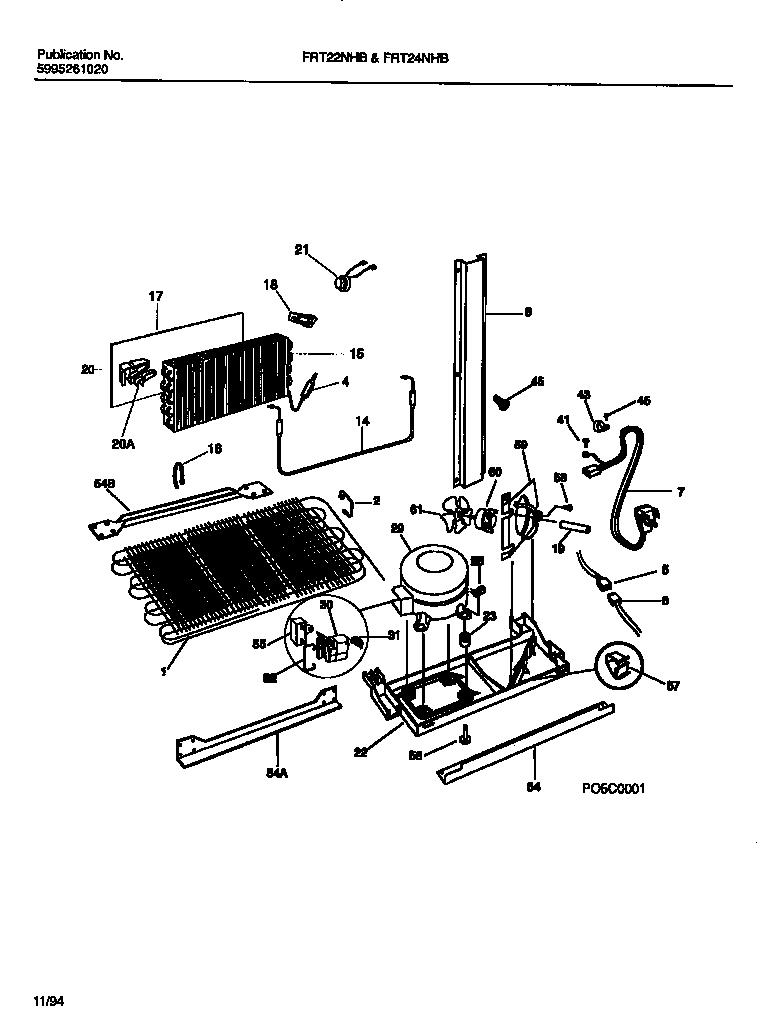

FRT24NHBD1 06 – COOLING SYSTEM

Products

Position	Product
*52005	HOT TUBE REPAIR KIT, SERVICE
1	WCI 5303289487
1	SPACER TUBE
2	WCI 5303289029
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 215458301
6	WCI 215501601
7	WCI 215459201
8	WCI 5303289033
14	WCI 5303292671
15	WCI 215379602
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303292457
18	WCI 5303292407
19	TUBE-RUBBER
20A	WCI 5303292405
20	WCI 5303292406
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303917193
30	WCI 216008900
31	WCI 5303299560
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43	5308000133 Frigidaire Refrigerator Clamp
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	5304455852 Frigidaire Refrigerator Screw
54B	WCI 5303289292
54	WCI 5303289027
54A	WCI 5303289311
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	SEAL-FOAM,COND FAN SHROUD
59	WCI 5303289031
60	WCI 215501800
61	WCI 5303289032
61	WCI 215004700
61	GROMMET, SILENCER (NOT ILLUSTRATED)
