FRT24PRAD2 04 – SHELVES, MOULDING

FRT24PRAD2 04 – SHELVES, MOULDING

Written by

in

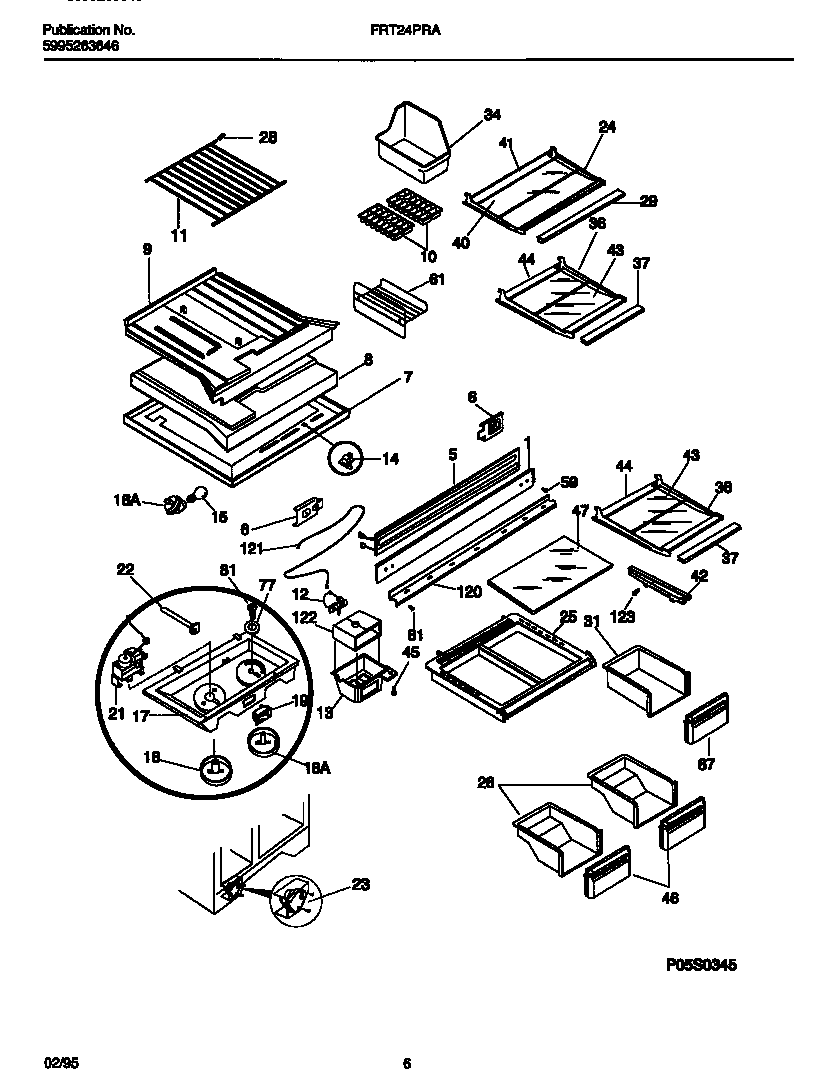

FRT24PRAD2 04 – SHELVES, MOULDING

Products

PositionProduct
*74044SPACER, FRZR SHELF (NOT ILLUSTRATED)
*74045WCI 215848000
1WCI 215002202
5WCI 215099600
6WCI 218279800
7WCI 215028104
7WCI 5303001380
8WCI 215038601
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SPACER-FRZR SHELF
11WCI 5303304568
12WASHER-AIR DEFLECTR
12WCI 215132300
12SPACER-AIR DEFLECTR
13NUT, ANCHOR (NI)
13WCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17NUT-ANCHOR
17WCI 215932903
18AWCI 5303296668
18WCI 5303296667
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303303674
21WCI 5303001260
22WCI 215932100
23SHIELD-DEFROST TIMR,BTM
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23COVER-DEFROST TIMER, TOP
24WCI 215919146
25WCI 215216604
25TRIM-CRISPER COVER
26WCI 5303292432
28END CAP-SHELF, PROTECTOR
29WCI 215919407
31WCI 5303292434
345303212918 Frigidaire Refrigerator Cont
36WCI 215919145
37WCI 215919414
40GLASS-SHELF, FULL SHELF
41WCI 215919807
42WCI 215002301
42HANGER-PAN/TRAY, RH
43GLASS-SHELF, HALF SHELF, (2)
44WCI 215919814
455304455651 Frigidaire Refrigerator Screw
46WCI 5303291323
47WCI 5303294005
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303292670
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019202
121WCI 215364001
121NUT,PUSH-ON ,DAMPER CABLE
122WCI 215132501
123215005101 Frigidaire Refrigerator Screw
