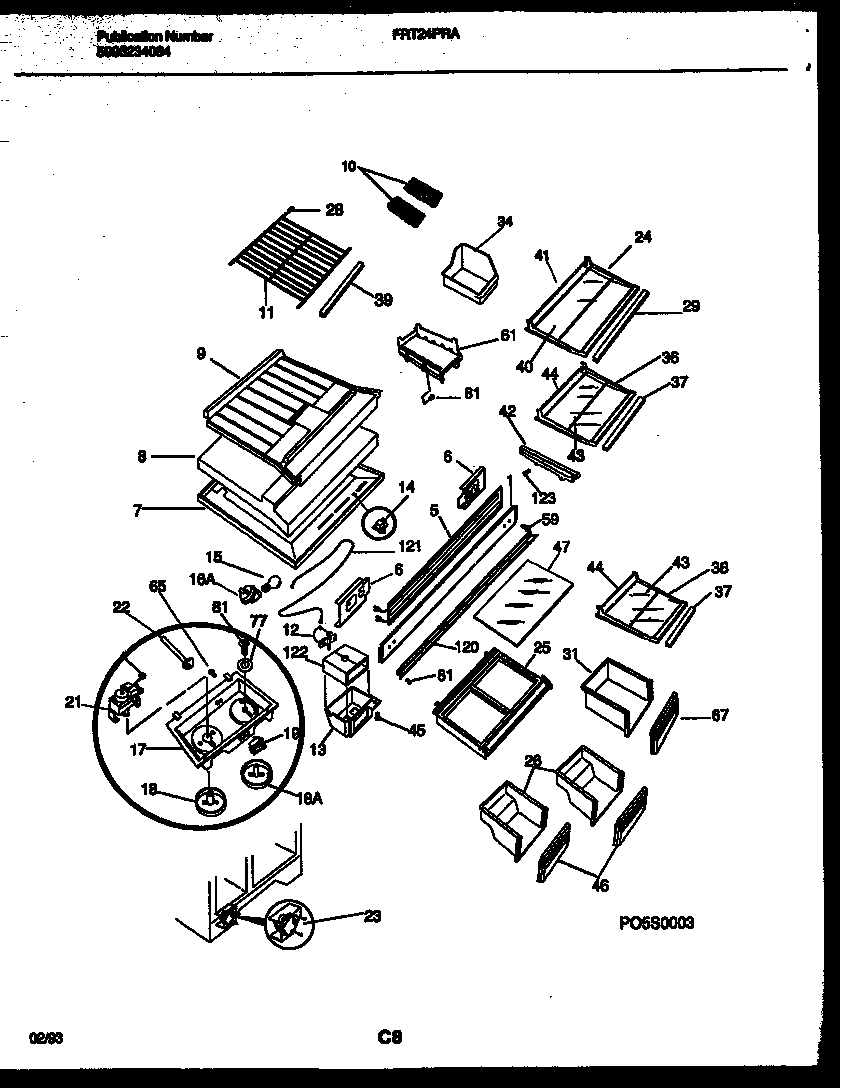

FRT24PRAY1 05 – SHELVES AND SUPPORTS

Written by

Products

Position	Product
*71818	HANGER-PAN/TRAY, RH
1	WCI 215002202
5	WCI 215099600
6	WCI 215096700
7	WCI 215028101
7A	WCI 5303001380
8A	3205266 Frigidaire Refrigerator Edge Protector
8	WCI 215038600
9	WCI 215033800
10	WCI 01121808
11	WCI 5303294245
12	WCI 215132300
12B	WASHER-AIR DEFLECTR
12A	SPACER-AIR DEFLECTR
13	WCI 215132600
13A	NUT, ANCHOR (NI)
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 5303292409
17A	WCI 215280700
18A	WCI 5303292411
18	WCI 5303292410
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303292452
21A	WCI 5303001260
22	HOUSING, CONTRL CAP TUBE
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B	5304455649 Frigidaire Refrigerator Screw
23A	COVER-DEFROST TIMER, TOP
23C	SHIELD-DEFROST TIMR,BTM
24	WCI 215069014
25	WCI 215216604
25A	TRIM-CRISPER COVER
26	WCI 5303292432
28	END CAP-SHELF, PROTECTOR
29A	WCI 5303209274
29	WCI 5303292427
31	WCI 5303292434
34	5303212918 Frigidaire Refrigerator Cont
36	FRAME-MEAT KPR SHLF, CANTILEVER
37A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
37	WCI 5303292424
39	WCI 215217505
40	GLASS-SHELF, FULL SHELF
41	WCI 5303292426
42	WCI 215002301
